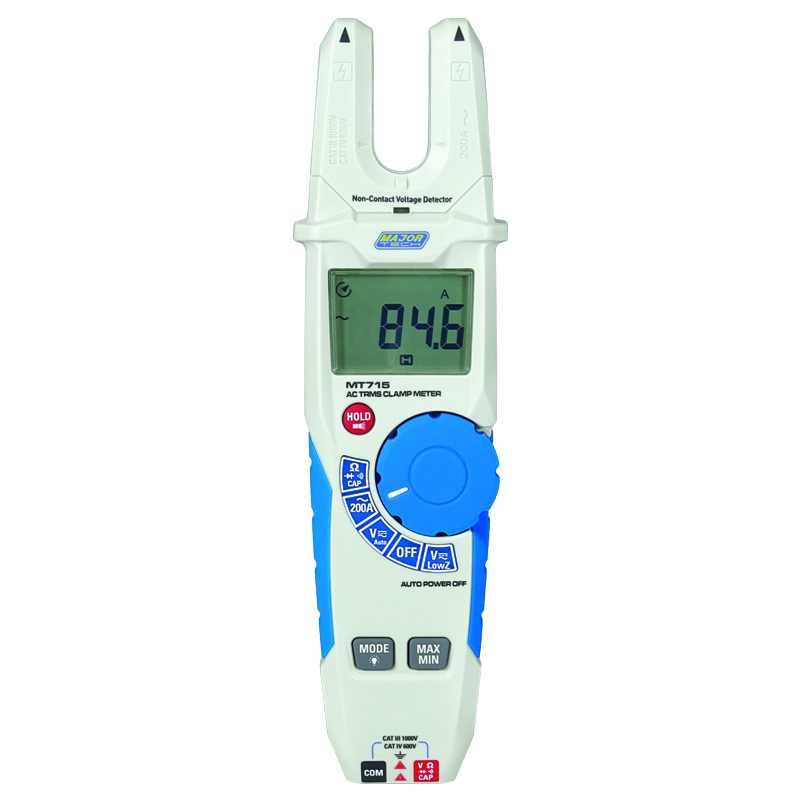

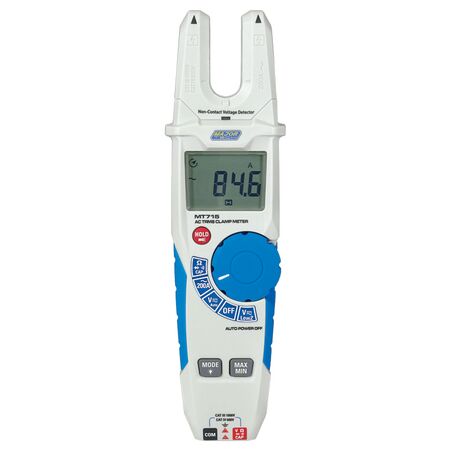

200A AC Open Jaw TRMS Clamp Meter | CAT IV 600V Safety Rating | Large Backlit LCD | 16mm Jaw Opening by Majortech
The 200A AC Open Jaw TRMS Clamp Meter is designed for accurate electrical diagnostics, featuring a CAT IV 600V safety rating and a large backlit LCD display. Ideal for industrial and electrical maintenance applications, it offers easy current measurement with a 16mm jaw opening and advanced features like non-contact voltage detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 200A AC Open Jaw TRMS Clamp Meter | CAT IV 600V Safety Rating | Large Backlit LCD | 16mm Jaw Opening by Majortech
Brand: Majortech
SKU: MT715
Alternatively Known As: True RMS Clamp Meter, AC Clamp Meter, Digital Clamp Meter, Open Jaw Clamp Meter, Electrical Clamp Meter
Technical Specifications
- DC Voltage Range: 1mV to 1000V, Resolution: 1mV, Accuracy: ±(1.0% + 2 digits)
- AC Voltage Range: 1mV to 1000V, Resolution: 1mV, Accuracy: ±(1.2% + 2 digits)
- Resistance Range: 0.1Ω to 60MΩ, Resolution: 0.1Ω, Accuracy: ±(1.0% + 4 digits)
- Capacitance Range: 0.01nF to 4000μF, Resolution: 0.01nF, Accuracy: ±(3.0% + 5 digits)
- Clamp Jaw Opening: 16mm
- Display: Large backlit LCD
- Safety Rating: CAT IV 600V
- Additional Features: Min/Max mode, LowZ range with low pass filter, Non-Contact Voltage detection, Diode test, Continuity buzzer, Built-in flashlight
- Dimensions (H x L x W): 180mm x 40mm x 70mm
- Weight: 0.3 kg
Key Features
- CAT IV 600V safety rating
- 6000 count True RMS measurement
- Large backlit LCD display
- Open jaw clamp with 16mm jaw opening for easy current measurement
- Measures AC/DC voltage up to 1000V
- Capacitance and resistance measurement
- Min and Max mode for capturing readings
- LowZ range with low pass filter to eliminate ghost voltages
- Non-Contact Voltage detection
- Diode test function and continuity buzzer
- Built-in flashlight
- Rugged double moulded rubber housing for heavy duty use
Professional Installation Requirements
- No professional installation required; recommended for use by qualified electricians or trained personnel for safety and accuracy.
Applications
- Industrial: Mining and heavy-duty electrical measurements
- Electrical maintenance and troubleshooting in crowded or tight cable areas
- General electrical testing and diagnostics
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Helps reduce energy waste by enabling accurate electrical diagnostics and maintenance
- Durable design reduces need for frequent replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech 200A AC Open Jaw TRMS Clamp Meter MT715 is available now for immediate purchase. Ideal for industrial, mining, and electrical maintenance applications.
