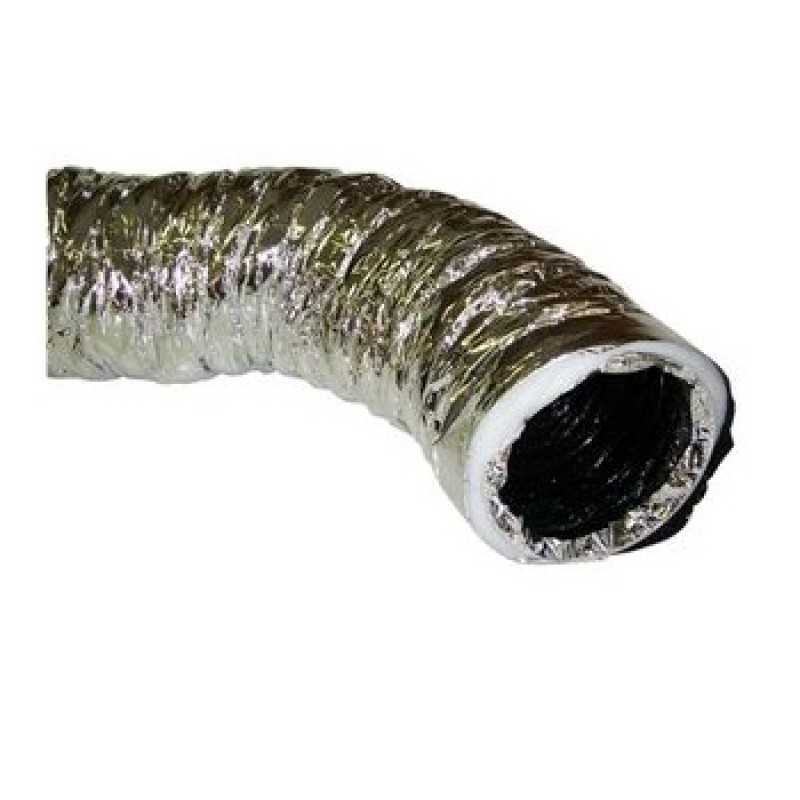

200mm Insulated Flexible Duct 6m R1.0 Repelec
Repelec Insulated Flexible Duct R1.0 200mm Diameter 6m Length Repele — Diameter: 200mm, Length: 6m.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulated Flexible Duct R1.0 | 200mm Diameter | 6m Length | Energy Efficient | by Repelec
Brand: Repelec
SKU: AIRAWFX200-R1.0
Alternatively Known As: Insulated Flexible Duct, R1.0 Ducting, 200mm Insulated Air Duct, HVAC Insulated Duct, Flexible Air Duct 200mm
Technical Specifications
- Diameter: 200mm
- Length: 6m
- Thermal Insulation: R1.0
- Construction: Multi-layer polyester and aluminium laminate with glass wool insulation
- Operating Temperature Range: -10°C to +80°C
- Maximum Air Velocity: 30 m/s
- Maximum Working Pressure: 2500 Pa
- Fire Rated to AS 4254.1
- Dimensions (H x L x W): 200mm x 6000mm x 200mm
- Weight: 3.5 kg
Key Features
- Flexible insulated ducting for HVAC applications
- Thermal insulation rating of R1.0 for energy efficiency
- 200mm diameter suitable for standard duct connections
- 6 metre length for versatile installation
- Reduces heat loss and condensation
- Lightweight and easy to handle
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician to ensure proper sealing and compliance with building codes.
Applications
- Residential and commercial HVAC systems
- Air conditioning and ventilation ductwork
- Exhaust and supply air systems
- Suitable for new installations and retrofits
Standards & Compliance
- Complies with AS/NZS 4254.1 for ductwork for air-handling systems in buildings
Environmental Benefits
- Improves energy efficiency by reducing heat loss in air distribution
- Minimizes condensation, reducing risk of mold and mildew
- Supports lower energy consumption in HVAC systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec DUCT INSULATED R1.0 200mm X 6m is available for immediate purchase. Ideal for efficient and compliant HVAC air distribution in residential and commercial buildings.
