Trade Discount 20%

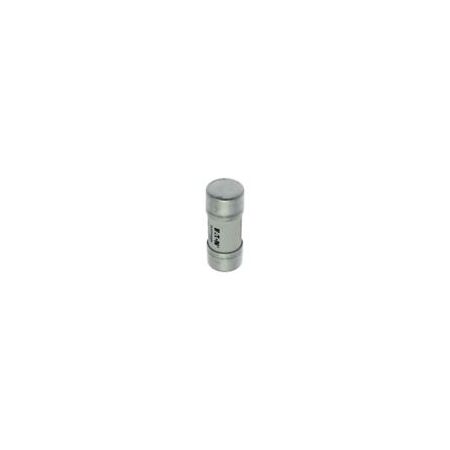

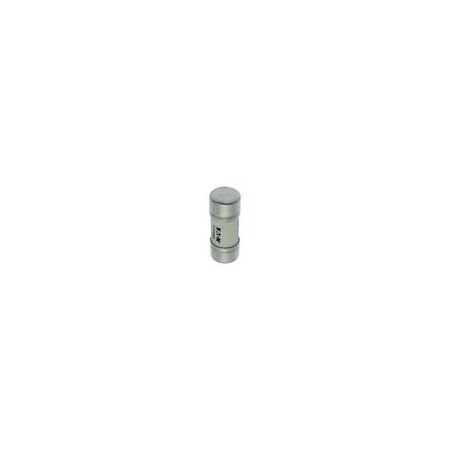

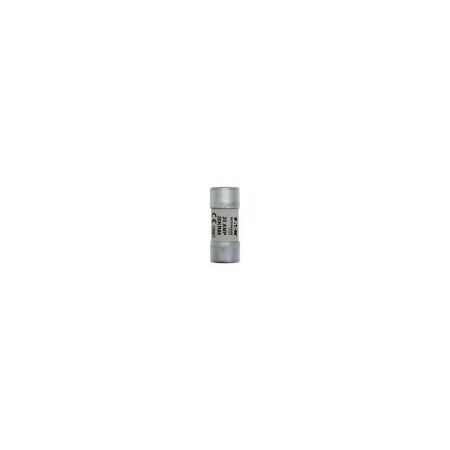

20A 415V AC Fuse | 33 kA Breaking Capacity | gG/gL Class | BS System C Type II by Eaton
20A 415V AC fuse designed for low voltage applications, featuring a high breaking capacity of 33 kA and gG/gL class for general purpose protection. Ideal for residential, commercial, and industrial electrical systems, ensuring compliance with British standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 20A 415V AC Fuse | 33 kA Breaking Capacity | gG/gL Class | BS System C Type II by Eaton
Brand: Eaton
SKU: 20KR85
Alternatively Known As: 20A 415V AC Fuse, British Standard Fuse 20A, Eaton KR85 Fuse, Low Voltage Fuse 20A
Technical Specifications
- Amperage Rating: 20 A
- Voltage Rating: 415 V AC
- Breaking Capacity: 33 kA
- Fuse Class: gG/gL
- Fuse Type: KR85
- Construction: BS system C type II
- Dimensions: 23 mm x 23 mm x 56 mm
- Weight: 53.45 g
- Certifications: BS IEC 60269
- Compliances: RoHS Compliant, CE Marked
- Dimensions (H x L x W): 23mm x 56mm x 23mm
- Weight: 0.053 kg
Key Features
- 20A amperage rating suitable for low voltage applications
- 415V AC voltage rating
- High breaking capacity of 33 kA for enhanced safety
- Class gG/gL fuse type for general purpose protection
- BS system C type II construction ensuring compliance with British standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse selection.
Applications
- Electrical protection in residential and commercial low voltage systems
- Industrial electrical circuits requiring 20A fuse protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's warranty policy for details.
Available Now
The Eaton 20A 415V AC House Service Low Voltage British Standard Fuse is available now for immediate purchase. Ideal for electrical protection in residential, commercial, and industrial low voltage systems.
