Trade Discount 42%

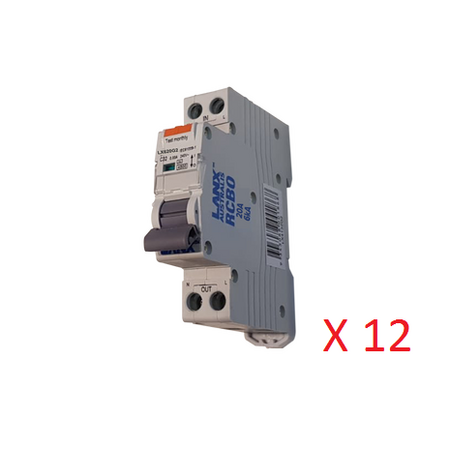

20A Single Pole RCBO 30mA | 6KA Short Circuit | Type A

SKU: LX620G2x 12
$256.80 List price: $439.20
+
20A single pole RCBO with 30mA sensitivity and 6KA short circuit protection—ideal for electrical safety. Built for reliable installation, with dual-protection performance and fine appearance.

Product Name/Title: 20A Single Pole RCBO 30mA | 6KA Short Circuit | Type A

SKU: LX620G2x 12

Alternatively Known As: 20 Amp RCBO, 20A Single Pole RCD MCB, Type A RCBO, 30mA Residual Current Breaker, 6kA RCBO

Technical Specifications
  • Rated Current: 20A
  • Rated Residual Operating Current: 30mA
  • Short Circuit Breaking Capacity: 6kA
  • Pole: Single
  • Type: A
  • Protection: Short circuit and overload dual-protection
  • Dimensions (H x L x W): 85mm x 70mm x 18mm
  • Weight: 0.2 kg
Key Features
  • Fine and unique appearance
  • Short circuit and overload dual-protection performance
  • Convenient and reliable installation mode
  • Rated short-circuit breaking capacity: 6kA
  • Rated Current: 20A
  • Type A RCBO
Professional Installation Requirements
  • Professional installation by a licensed electrician is required to ensure compliance with safety standards and proper operation.
Applications
  • Residential electrical circuits
  • Commercial electrical installations
  • Industrial electrical safety systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances electrical safety reducing risk of fire and electrical hazards
  • Supports energy-efficient electrical system protection
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The LANX 20A Single Pole RCBO 30mA 6KA Short Circuit Type A is available now for immediate purchase. Ideal for enhancing electrical safety in residential, commercial, and industrial applications.
