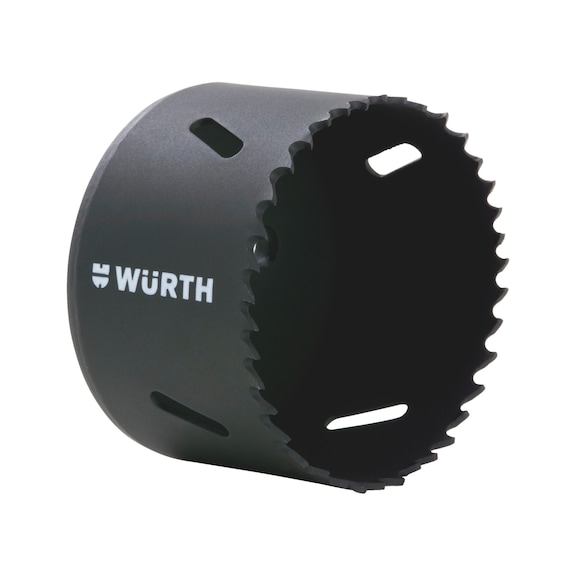

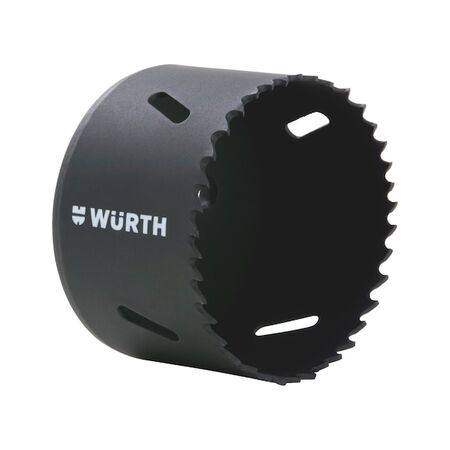

20mm High-Speed Steel Hole Saw | Fast Drilling Speed | Low-Vibration Operation | by Wurth
The 20mm High-Speed Steel Hole Saw is designed for precision drilling in steel and stainless steel materials. With extremely fast drilling speeds and low-vibration operation, it's perfect for machining and metalworking tasks. Ideal for use with cordless drills and upright drilling machines, this tool ensures high concentricity and side stroke accuracy for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 20mm High-Speed Steel Hole Saw | Fast Drilling Speed | Low-Vibration Operation | by Wurth
Brand: Wurth
SKU: 632900020
Alternatively Known As: Hole Saw Drill Bit, Steel Hole Cutter, Stainless Steel Hole Saw
Technical Specifications
- Diameter: 20 mm
- Cutting depth: 38 mm
- Drive type: Outer hexagon
- Suitable for cordless drills (points system): 3 of 4
- Suitable for drill (points system): 3 of 4
- Suitable for upright drilling machine (points system): 4 of 4
- Versatility (points system): 4 of 4
- Drilling speed (points system): 4 of 4
- Bore hole quality (points system): 2 of 4
- Recommended rotation speed in soft steel: 445 rpm
- Recommended rotation speed in tool steel and stainless steel: 220 rpm
- Recommended rotation speed in cast iron: 290 rpm
- Recommended rotation speed in brass: 580 rpm
- Recommended rotation speed in aluminium: 660 rpm
- Dimensions (H x L x W): 38mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Extremely fast drilling speed with minimal effort
- High concentricity and side stroke accuracy
- Very quiet and low-vibration operation up to 38 mm cutting depth
- Recommended rotation speeds for various materials to optimize performance and tool life
Professional Installation Requirements
- Use by trained professionals or experienced operators is recommended to ensure safety and optimal performance.
Applications
- Drilling precise holes in steel and stainless steel materials
- Suitable for use with cordless drills, upright drilling machines, and standard drills
- Ideal for machining and metalworking tasks requiring fast and accurate hole cutting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Efficient cutting reduces energy consumption during drilling operations
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth High-Speed Steel Hole Saw 20mm is available for immediate purchase, ideal for machining and metalworking applications requiring precision drilling.
