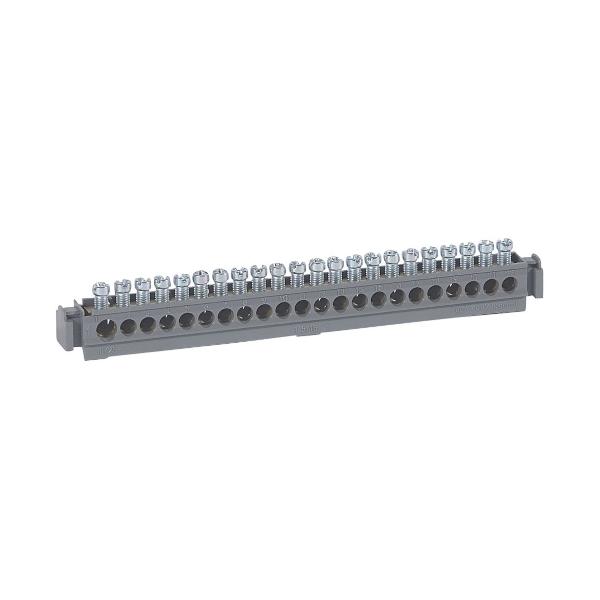

22 Way Terminal Block | 100A Max | Brass & Zinc-Plated | Mounted Support by Legrand
22 way terminal block with 100A max current and brass, zinc-plated construction—ideal for industrial and commercial electrical panels. Built for durability, with pre-installed support for easy mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 22 Way Terminal Block | 100A Max | Brass & Zinc-Plated | Mounted Support by Legrand
Brand: Legrand
SKU: 04826
Alternatively Known As: Terminal Block, Electrical Terminal Block, DIN Rail Terminal Block, Busbar Terminal Block, Connection Terminal Block
Technical Specifications
- Material: Brass and zinc-plated bichromated steel
- Connectors: 2 green Duplix Earth, 2 blue Duplix Neutral, 2 red Duplix Live
- Current Rating: 100 A max at 400 V~ with 25 mm² input
- Current Rating: 80 A max at 400 V~ with 16 mm² input
- Number of connections: 1 x 6 to 25 mm² + 21 x 1.5 to 16 mm²
- Mounting: Rail with universal support Cat.No 0 048 11 or 12 x 2 flat bar
- Standard Compliance: IEC 60998-2-1
- Dimensions (H x L x W): 88mm x 176mm x 100mm
- Weight: 0.1 kg
Key Features
- Pre-installed on support for easy mounting
- Made with brass and zinc-plated bichromated steel for durability
- Color-coded Duplix connectors for Earth (green), Neutral (blue), and Live (red)
- Conforms to IEC 60998-2-1 standard
- Supports up to 100 A max at 400 V~ with 25 mm² input
- Supports up to 80 A max at 400 V~ with 16 mm² input
- Mounting on rail with universal support or flat bar
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Electrical distribution and connection in industrial and commercial electrical panels
- Compatible with Plexo³ range, HL, and XL³ 125 enclosures
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Supports efficient electrical connections reducing energy loss
Warranty Information
1 Year Warranty
Available Now
The Legrand 22 Way Terminal Block Mounted in Support is available now for immediate purchase. Ideal for electrical distribution and connection in industrial and commercial electrical panels.
