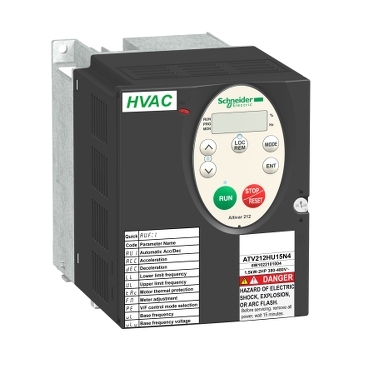

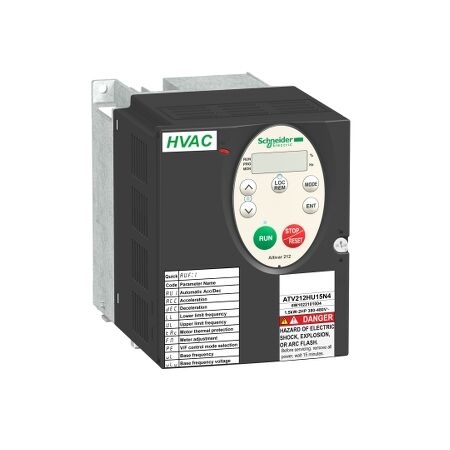

Product Name/Title: 22kW 3HP Variable Speed Drive | Optimized for HVAC | Integrated EMC Filter | by Clipsal
Brand: Clipsal
SKU: SCHATV212HU22N4
Alternatively Known As: ATV212 Variable Speed Drive, Schneider ATV212HU22N4, 22kW VSD, 3HP VFD, HVAC Drive, Clipsal Inverter Drive
Technical Specifications
- Power Rating: 22kW (30HP)
- Input Voltage: 380-480V AC, 3-phase
- Output Voltage: 0-480V AC, 3-phase
- Output Frequency: 0.5-200Hz
- Integrated EMC filter (CEM I)
- Overload Capacity: 120% for 60s
- Control Method: V/F, Sensorless Vector
- Protection: Overcurrent, Overvoltage, Undervoltage, Overtemperature
- Ambient Temperature: -10°C to +50°C
- IP21 enclosure
- Dimensions (H x L x W): 350mm x 232mm x 180mm
- Weight: 18 kg
Key Features
- Optimized for HVAC applications
- Energy-saving variable speed control
- Integrated EMC filter for reduced electrical noise
- Built-in CEM I for compliance with industrial standards
- Easy-to-use interface and setup
- Robust design for demanding environments
- Overload and short-circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- HVAC systems in commercial buildings
- Pumps and fans in industrial environments
- Water treatment plants
- General motor control for energy efficiency
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Lowers greenhouse gas emissions through efficient operation
- Minimizes electrical noise with integrated EMC filter
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal ATV212 22kW 3HP 480V 3-Phase Variable Speed Drive (SCHATV212HU22N4) is available for immediate purchase. Ideal for HVAC, pump, and industrial motor control applications.
