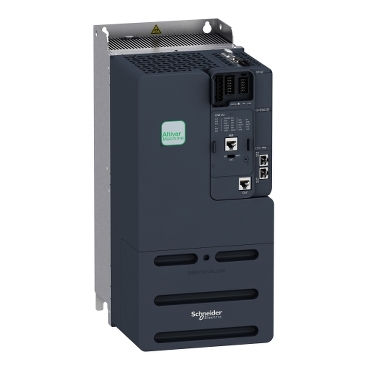

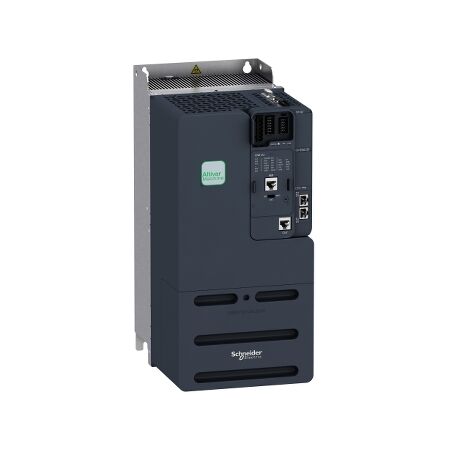

22kW Variable Speed Drive 30HP Power Rating Integrated Safety Features Clipsal
The 22kW Variable Speed Drive is designed for heavy-duty industrial applications, offering a robust 30HP power rating and integrated safety functions like Safe
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 22kW Variable Speed Drive | 30HP Power Rating | Integrated Safety Features | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV340D22N4E
Alternatively Known As: ATV340 VSD, ATV340D22N4E, 22kW Variable Speed Drive, 30HP VSD, Schneider ATV340, Clipsal VSD 22kW
Technical Specifications
- Power: 22kW (30HP)
- Input Voltage: 3-phase 380-480V AC
- Output Frequency: 0.1 to 599Hz
- Overload Capacity: 150% for 60 seconds
- Control Type: Vector control, V/F, Sensorless
- Integrated Safety: STO (Safe Torque Off)
- Communication: Modbus, CANopen, Ethernet (optional)
- Operating Temperature: -15°C to +60°C (derating above 50°C)
- Enclosure: IP20
- Display: LCD keypad
- Dimensions (H x L x W): 420mm x 232mm x 180mm
- Weight: 18 kg
Key Features
- 22kW (30HP) power rating for heavy-duty industrial applications
- Supports 3-phase 380-480V input
- Robust design for harsh environments
- Integrated safety functions (STO, Safe Torque Off)
- High overload capacity (150% for 60s)
- Flexible communication options (Ethernet, Modbus, CANopen)
- Advanced motor control for asynchronous and synchronous motors
- Easy-to-use interface with LCD keypad
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician in accordance with local electrical regulations and manufacturer guidelines.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- Material handling
- Packaging machinery
- HVAC systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces mechanical wear and maintenance
- Lowers overall power consumption in industrial processes
Warranty Information
Standard 2-year manufacturer warranty.
Available Now
The Clipsal ATV340 22kW 30HP 400V VSD (SCHATV340D22N4E) is available for immediate purchase. Ideal for industrial automation, pumps, conveyors, and other demanding motor control applications.
