Trade Discount 17%

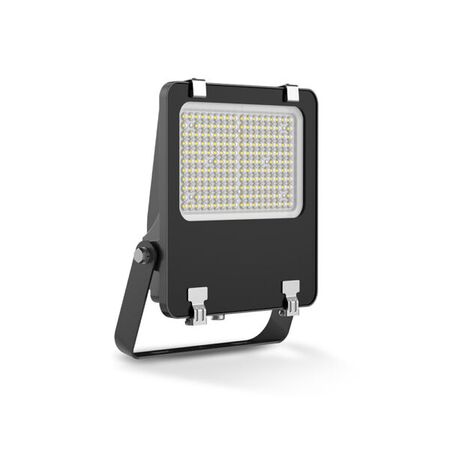

240W Asymmetric Flood Light Power Selectable 5000K Daylight Ektor
The 240W Asymmetric Flood Light is designed for versatile outdoor lighting, featuring power selectable options of 120W, 180W, and 240W.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Power Selectable LED Flood Light, Asymmetric LED Floodlight, Outdoor LED Security Light, Adjustable Beam Floodlight
Technical Specifications
- Total System Efficiency: 166 lm/W
- Colour Temperature: 5000K Daylight
- Power Options: 120W, 180W, 240W
- Lumens Output at 240W: 37150 lm
- Input Voltage: 230Vac (216-253V range)
- Power Factor: 0.97
- Earth Leakage: 0.75 mA
- IP Rating: IP66
- IK Rating: IK08
- Driver: 1-10V dimmable, integrated constant current
- Installation: Surface mount
- Body Material: Aluminium with powdercoated finish
- Diffuser Material: Glass
- Operating Temperature: Up to 50°C
- Wiring: Flying leads, 1500 mm length
- Dimensions (H x L x W): 150mm x 450mm x 400mm
- Weight: 8 kg
Key Features
- Power selectable: 120W, 180W, 240W options
- High system efficiency of 166 lm/W
- Adjustable asymmetric beam angle for targeted lighting
- IP66 rated for dust and water protection
- IK08 rated for impact resistance
- Dimmable with 1-10V dimmable driver included
- Surface mount installation with silver-grey powdercoated aluminium body
- Glass diffuser for optimal light distribution
- Power factor of 0.97 and low earth leakage of 0.75 mA
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Outdoor lighting for commercial and industrial areas
- Security lighting for building perimeters
- Sports field and stadium lighting
- Architectural and landscape illumination
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.5 – Floodlights
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
Environmental Benefits
- High luminous efficacy reduces energy consumption and carbon footprint.
- Long lifespan reduces waste and replacement frequency.
- Dimmable driver allows energy savings through adjustable light output.
Warranty Information
5 years return to base warranty for domestic use.
Available Now
The Ektor 240W Asymmetric Flood Light is available for immediate purchase, ideal for commercial, industrial, and security outdoor lighting applications.
