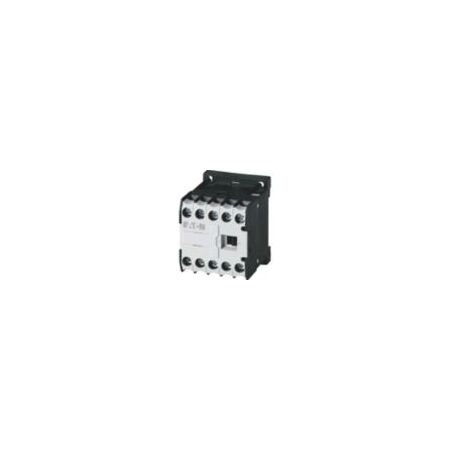

24V DC Contactor Relay | 3 N/O & 1 N/C Contacts | DIN-Rail Mounting | Eaton
The 24V DC contactor relay features 3 normally open and 1 normally closed contact configuration—ideal for industrial control systems and automation equipment. Built for reliable performance with a high mechanical lifespan of 20 million operations and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24V DC Contactor Relay | 3 N/O & 1 N/C Contacts | DIN-Rail Mounting | Eaton
Brand: Eaton
SKU: Y7-10157
Alternatively Known As: DILER Control Relay, DILER Mini-Contactor, Eaton 24V DC Contactor Relay, Moeller DILER Relay
Technical Specifications
- Coil Voltage: 24 V DC
- Contact Configuration: 3 Normally Open (N/O), 1 Normally Closed (N/C)
- Rated Operational Current: Up to 10 A
- Rated Operational Voltage: Max 600 V AC
- Insulation Voltage: 690 V
- Impulse Withstand Voltage: 6000 V AC
- Mechanical Lifespan: 20,000,000 operations
- Operating Temperature Range: -25 °C to 50 °C
- Mounting: DIN-rail or screw
- Terminal Capacity: 1 x (0.75 - 2.5) mm² solid, 2 x (0.75 - 1.5) mm² flexible with ferrule
- Power Consumption: 2.3 W (pick-up and sealing)
- Switching Time (make contacts): 26-35 ms closing delay, 15-25 ms opening delay
- Dimensions (H x L x W): 58mm x 54mm x 45mm
- Weight: 0.206 kg
Key Features
- 24 V DC coil voltage
- 3 normally open (N/O) contacts and 1 normally closed (N/C) contact
- Screw terminal connections
- Positive operating contacts to EN 60947-5-1 appendix L
- Interlocked opposing contacts
- DIN-rail or screw mounting
- Rated operational current up to 10 A
- High mechanical lifespan of 20,000,000 operations
- Protection against direct contact when actuated from front (EN 50274)
- Shock resistance up to 10 g
- Rated insulation voltage of 690 V
- Rated impulse withstand voltage of 6000 V AC
- Operating temperature range from -25 °C to 50 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications requiring DC operation
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption coil (2.3 W) reduces energy usage
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller DILER-31-G 24V DC Contactor Relay is available for immediate purchase, ideal for industrial and automation control applications.
