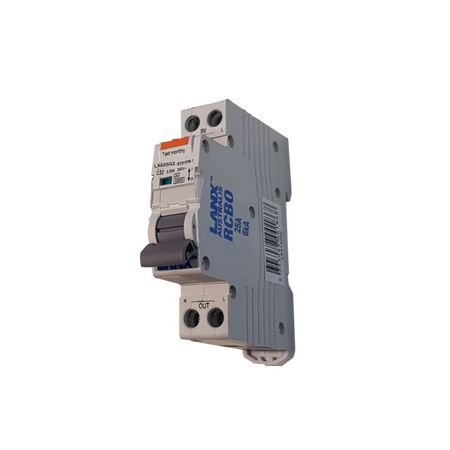

25A Single Pole RCBO | 30mA 6kA | Type A

BRAND: LANX
SKU: LX625G2
$21.80 List price: $25.40
+
25A single pole RCBO with 30mA sensitivity and 6kA breaking capacity—ideal for residential and commercial electrical systems. Built for dual-protection with short circuit and overload safety, featuring a convenient installation mode.

Product Name/Title: 25A Single Pole RCBO | 30mA 6kA | Type A

SKU: LX625G2

Alternatively Known As: 25 Amp Single Pole RCBO, 25A Type A RCBO, Residual Current Breaker with Overcurrent Protection

Technical Specifications
  • Rated Current: 25A
  • Residual Current: 30mA
  • Breaking Capacity: 6kA
  • Type: A
  • Protection: Short circuit and overload dual-protection
  • Pole: Single Pole
  • Dimensions (H x L x W): 85mm x 70mm x 18mm
  • Weight: 0.2 kg
Key Features
  • Fine and unique appearance
  • Short circuit and overload dual-protection performance
  • Convenient and reliable installation mode
  • Rated short-circuit breaking capacity: 6kA
  • Rated Current: 25A
  • Type A RCBO for residual current protection
Professional Installation Requirements
  • Must be installed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
  • Residential electrical distribution boards
  • Commercial electrical installations
  • Industrial electrical safety systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances electrical safety reducing risk of electrical fires and faults
  • Supports energy-efficient electrical system protection
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Lanx 25A Single Pole RCBO Type A is available now for immediate purchase. Ideal for enhancing electrical safety in residential, commercial, and industrial installations.
