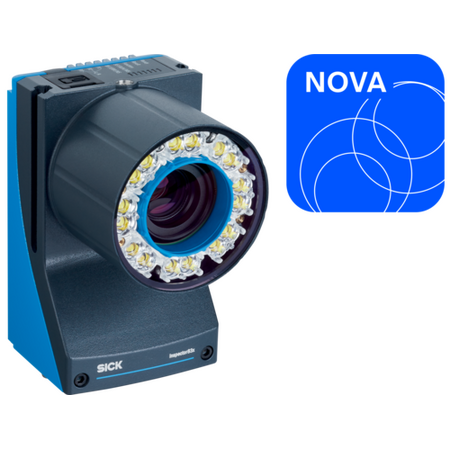

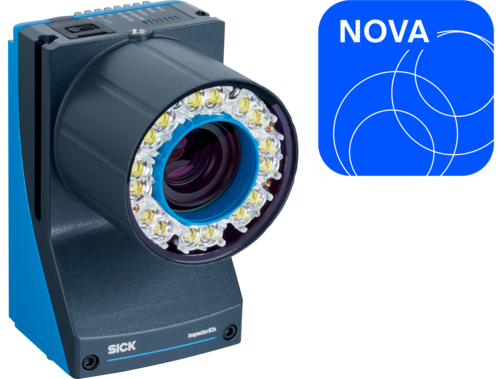

2D Snapshot Sensor 1.3 Megapixel Resolution Global-Shutter Technology Variant-1 SICK
The 2D snapshot sensor offers 1.3 Megapixel resolution and global-shutter technology, making it ideal for quality inspection in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor resolution: 1232 px x 1024 px (1.3 Megapixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6500 K ± 1000 K
- Lens: C-mount, 8 mm focal length, optical format 1/1.8"
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
- Communication: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Frame rate: 60 Hz
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Weight: 545 g without lens and cables
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.545 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus with integrated white LED illumination
- Supports multiple communication protocols including Ethernet, PROFINET, and EtherNet/IP
- Robust IP65 aluminum die cast housing suitable for industrial environments
- High sensor resolution of 1.3 Megapixels with 60 Hz frame rate
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade
- Multiple input/output options with opto-decoupled inputs and configurable I/O
- Supports external illumination and has 8 status LEDs for optical indicators
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial automation sensors and network protocols to ensure optimal performance and safety.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination in automation
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Integrated LED illumination reduces the need for external lighting, lowering energy consumption
- Durable aluminum housing extends product life and reduces waste
- Supports software upgrades and customization, minimizing hardware replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8301P-1MCIBXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
