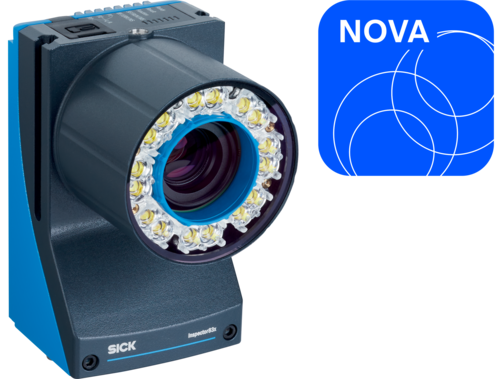

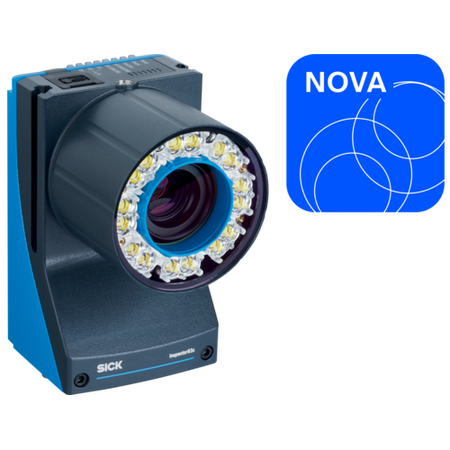

2D Snapshot Sensor 5.1 Megapixel Resolution Global-Shutter Technology Variant-2 SICK

BRAND: SICK
SKU: 1143348
$21,609.30 List price: $27,160.70
+ −
30 Days Return Electricians Unlock Trade Access
The 2D Snapshot Sensor is equipped with a 5.1 Megapixel CMOS monochrome sensor and global-shutter technology
Technical Specifications
  • Sensor resolution: 2464 px x 2048 px (5.1 Megapixel)
  • Pixel size: 2.74 µm x 2.74 µm
  • Sensor size: 6.75 mm x 5.61 mm
  • Shutter technology: Global-Shutter
  • Working range: 200 mm to 2500 mm depending on lens
  • Illumination: Integrated white LED, 6500 K ± 1000 K
  • Power consumption: 21 W
  • Supply voltage: 24 V DC ± 20%
  • Enclosure rating: IP65
  • Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
  • Communication: Ethernet TCP/IP, PROFINET, EtherNet/IP
  • Operating temperature: 0 °C to +40 °C
  • Storage temperature: -20 °C to +70 °C
  • Relative humidity: ≤ 90%, non-condensing
  • Weight: 545 g without lens and cables
  • Dimensions (H x L x W): 60mm x 120mm x 100mm
  • Weight: 0.55 kg
Key Features
  • 2D snapshot technology with 5.1 Megapixel CMOS monochrome sensor
  • Programmable and configurable via SensorApp Nova Inspector
  • Integrated white LED illumination (6,500 K)
  • Adjustable manual optical focus with C-mount lens
  • Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP
  • Robust IP65 aluminum die-cast housing
  • High MTBF of 100,000 hours
  • Supports external illumination and multiple I/O options
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial vision systems and electrical wiring standards to ensure proper setup and compliance with safety regulations.
Applications
  • Quality inspection in manufacturing
  • Dimension, contour, and volume measurement
  • 2D code and OCR identification
  • Pattern recognition and classification
  • Position determination in automation
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Integrated LED illumination reduces need for external lighting, lowering energy consumption
  • Durable aluminum housing extends product life and reduces waste
  • High MTBF reduces frequency of replacements and associated environmental impact
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific terms.

Available Now

The SICK V2D8305P-1MCIBXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
