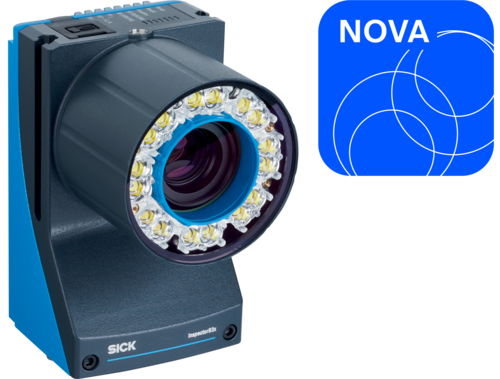

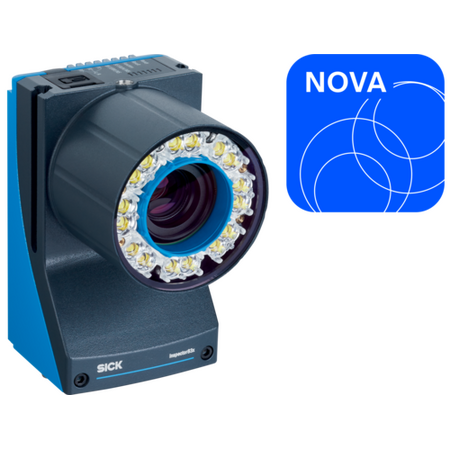

2D Snapshot Sensor 5.1 Megapixel Resolution Global-Shutter Technology Variant-3 SICK

BRAND: SICK
SKU: 1144165
$22,016.40 List price: $27,672.40
+ −
30 Days Return Electricians Unlock Trade Access
The 2D Snapshot Sensor offers a 5.1 Megapixel CMOS color sensor and global-shutter technology, making it perfect for quality inspection in manufacturing and
Technical Specifications
  • Sensor resolution: 2464 px x 2048 px (5.1 Megapixel)
  • Pixel size: 2.74 µm x 2.74 µm
  • Sensor size: 6.75 mm x 5.61 mm
  • Working range: 200 mm to 2500 mm depending on lens
  • Illumination: Integrated white LED, 6500 K ± 1000 K
  • Shutter technology: Global-Shutter
  • Lens: C-mount, 12 mm focal length, optical format 1/1.8"
  • Power supply: 24 V DC ± 20%
  • Power consumption: 21 W
  • Enclosure rating: IP65
  • Connection types: M12 and M8 connectors for power, I/O, Ethernet, and external illumination
  • Operating temperature: 0 °C to +40 °C
  • Storage temperature: -20 °C to +70 °C
  • Vibration and shock resistance compliant with EN 60068 standards
  • Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP, web server for configuration
  • Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
  • MTBF: 100,000 hours
  • Dimensions (H x L x W): 85mm x 108mm x 63mm
  • Weight: 0.55 kg
Key Features
  • 2D snapshot technology with 5.1 Megapixel CMOS color sensor
  • Programmable and configurable via SensorApp Nova Inspector
  • Integrated white LED illumination with adjustable optical focus
  • Global-Shutter shutter technology for precise image capture
  • Multiple interface options including Ethernet, PROFINET, and EtherNet/IP
  • Robust aluminum die-cast housing with IP65 rating
  • Supports customer-specific tool expansion via SICK Nova Tool plug-in
  • License provided as device license without time limit
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
  • Quality inspection in manufacturing
  • Dimension, contour, and volume measurement
  • 2D code and OCR identification
  • Pattern recognition and classification
  • Sorting and position determination in industrial automation
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED illumination reduces power consumption
  • Durable aluminum housing extends product lifespan, reducing waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK V2D8305P-1CCICXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
