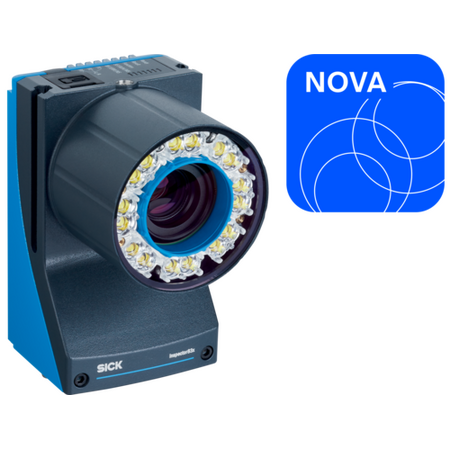

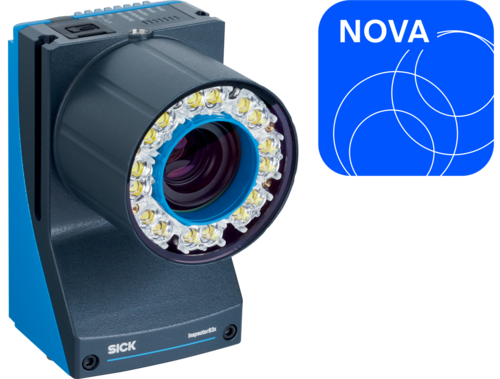

2D Snapshot Sensor 5.1 Megapixels Global-Shutter Technology Variant-4 SICK
The 2D Snapshot Sensor is designed for high-precision quality inspection in industrial settings, featuring a 5.1 Megapixel resolution and global-shutter technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixels)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Optical focus: Adjustable (manual)
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6500 K ± 1000 K
- LED class: Risk group 1 (IEC 62471 / EN 62471)
- Lens: C-mount, 1/1.8" optical format, 16 mm focal length
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65 (IEC 60529)
- Housing material: Aluminum die cast
- MTBF: 100,000 hours
- Scan/frame rate: 30 Hz
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
- Communication protocols: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5000 m
- Dimensions (H x L x W): 84.5mm x 108mm x 63.1mm
- Weight: 0.545 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus with integrated white LED illumination
- Supports multiple communication protocols including Ethernet, PROFINET, and EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- High sensor resolution of 5.1 Megapixels with 30 Hz frame rate
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade
- Multiple connection types including M12 and M8 connectors
- Equipped with 8 status LEDs for optical indication
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper configuration, connection, and compliance with safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Integrated LED illumination reduces external lighting requirements, lowering energy consumption.
- Durable aluminum housing extends product lifespan, reducing waste.
- Supports efficient quality control to minimize defective products and material waste.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D8305P-1MCKDXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and measurement applications.
