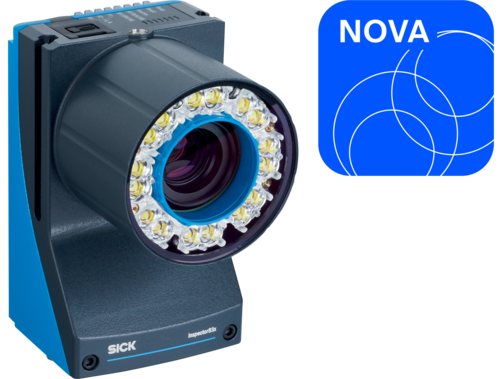

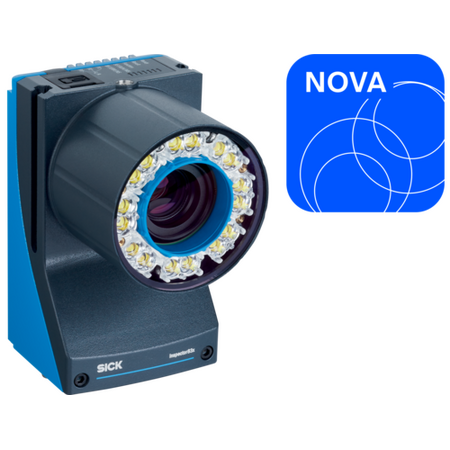

2D Snapshot Sensor CMOS Color with Global-Shutter 1.3 Mpixel Resolution SICK

BRAND: SICK
SKU: 1148468
$20,043.40 List price: $25,192.50
+ −
30 Days Return Electricians Unlock Trade Access
The 2D Snapshot Sensor is designed for quality inspection in industrial settings, featuring advanced CMOS color technology and a high resolution of 1,232 px x 1,024
Technical Specifications
  • Technology: 2D snapshot
  • Sensor: CMOS Color with Global-Shutter
  • Sensor resolution: 1,232 px x 1,024 px (1.3 Mpixel)
  • Pixel size: 5.48 µm x 5.48 µm
  • Sensor size: 6.75 mm x 5.61 mm
  • Working range: 200 mm to 2,500 mm depending on lens
  • Illumination: Integrated white LED, 6,500 K ± 1,000 K
  • Lens: C-mount, 8 mm focal length, optical format 1/1.8"
  • Power supply: 24 V DC ± 20%
  • Power consumption: 21 W
  • Enclosure rating: IP65
  • Housing material: Aluminum die cast
  • Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Web server
  • Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
  • Operating temperature: 0 °C to +40 °C
  • Storage temperature: -20 °C to +70 °C
  • Vibration and shock resistance compliant with EN 60068 standards
  • MTBF: 100,000 hours
  • Dimensions (H x L x W): 84.5mm x 108mm x 63.1mm
  • Weight: 0.545 kg
Key Features
  • 2D snapshot technology with CMOS color sensor
  • Programmable and configurable via SensorApp Nova Inspector
  • Integrated white LED illumination (6,500 K ± 1,000 K)
  • Adjustable manual optical focus
  • Global-Shutter shutter technology
  • Multiple interface options including Ethernet, PROFINET, EtherNet/IP
  • Robust IP65 aluminum die cast housing
  • High sensor resolution of 1,232 px x 1,024 px (1.3 Mpixel)
  • Supports external illumination and multiple I/O configurations
  • Includes Quality Inspection License with optional Intelligent Inspection Upgrade
Professional Installation Requirements
  • Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
  • Quality inspection in manufacturing
  • Dimension, contour, and volume measurement
  • 2D code and OCR identification
  • Pattern recognition and classification
  • Sorting and 2D position determination
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Integrated LED illumination reduces need for external lighting, lowering energy consumption
  • Durable aluminum housing extends product lifespan, reducing waste
  • Supports efficient quality control to minimize defective products and material waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK V2D8301P-1CCIBXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
