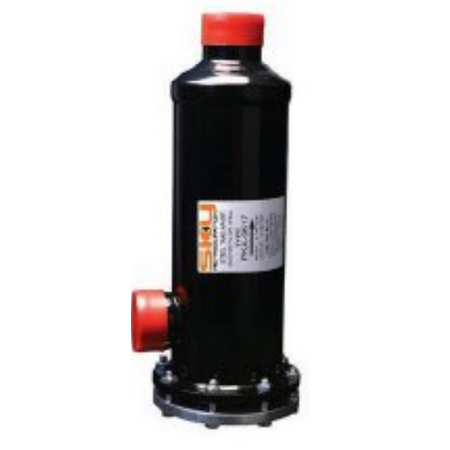

3 Core - 1-3/8 SOL Pressure Vessel | High Pressure Handling | Anti-Corrosion Finish | by Aspen Pumps
The 3 Core - 1-3/8 SOL Pressure Vessel is designed for HVAC systems requiring high pressure refrigerant handling. With a robust construction featuring solid copper connections and an anti-corrosion powder coat finish, it ensures durability and efficiency. Ideal for commercial and industrial refrigeration applications, this vessel supports efficient refrigerant filtration, reducing system leaks and environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Core - 1-3/8 SOL Pressure Vessel | High Pressure Handling | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 302-2203
Alternatively Known As: Pressure Vessel 3 Core, Accessible Filter Drier Shell, Refrigeration Pressure Vessel
Technical Specifications
- Manufactured in accordance with ISO/AS 5149.2
- Safe Working Pressure (SWP): 4,380 kPa
- Connection size: 1 3/8 inch
- Liquid and suction capacity calculated at evaporating temps -15°C and 4.4°C, condensing temps 30°C and 32°C

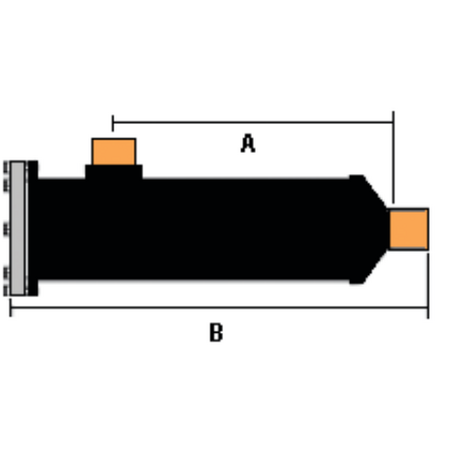

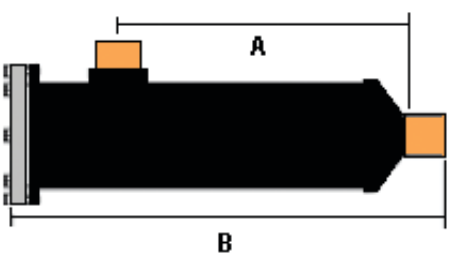

- Length: 424 mm
- Double plated steel end plate with stainless steel bolts
- Anti-corrosion powder coat finish
- Solid copper connections
- Large secondary mesh filter for particulate removal with minimal pressure drop
- Dimensions (H x L x W): 100mm x 424mm x 100mm
- Weight: 3.5 kg
Key Features
- Handles high pressures of R-410a standard and is CO2 upgradeable
- Double plated steel end plate with stainless steel bolts for extended service life
- Anti-corrosion powder coat finish
- Solid copper connections for ease of installation and increased service life
- Large secondary mesh filter enabling particulate removal with minimal pressure drop
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration professional is recommended to ensure system integrity and safety.
Applications
- HVAC systems requiring high pressure refrigerant handling
- Commercial and industrial refrigeration systems
- Air conditioning systems using R-410a and CO2 refrigerants
Standards & Compliance
- Complies with AS/NZS ISO 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports efficient refrigerant filtration reducing system leaks and environmental impact
- Durable construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Aspen SKY Pressure Vessel 3 Core - 1-3/8 SOL is available for immediate purchase, ideal for commercial and industrial refrigeration and air conditioning systems.
