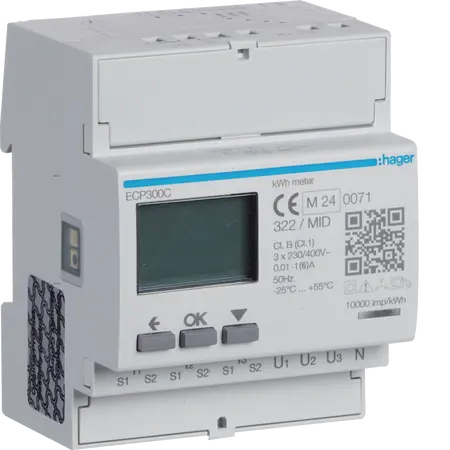

3 Phase kWh Meter via CT 1A/5A | 4M S0 MID | IP20 Indoor Use by Hager

BRAND: :hager
SKU: ECP300C
$431.20 List price: $551.40
+
3 phase kWh meter with CT 1A/5A and 4M S0 MID—ideal for industrial, commercial, and residential energy monitoring. Built for precision, with IP20 protection for indoor use and compliance with AS/NZS 3820 standards.

Product Name/Title: 3 Phase kWhmeter via CT 1A or 5A 4M S0 MID

Brand: Hager

SKU: ECP300C

Alternatively Known As: 3 Phase Energy Meter, kWh Meter, MID Certified Energy Meter

Technical Specifications
  • Type of pole: 3P+N
  • Measuring system: Measurement transformer
  • Current measurement range: 0.01 - 6.0 A
  • Measurement range voltage Ph-N: 92 - 276 V
  • Measurement range voltage Ph-Ph: 160 - 480 V
  • Frequency measuring range: 45 - 65 Hz
  • Accuracy class: B
  • Calibrated: Yes
  • Operating temperature: -25 - 55 °C
  • Storage/transport temperature: -25 - 70 °C
  • Power consumption: 2 VA
  • Total power loss under IN: 0.60 W
  • Dimensions (H x L x W): 90mm x 60mm x 72mm
  • Weight: 0.5 kg
Key Features
  • 3-phase measurement with a rated current of 5A.
  • Maximum measuring circuit current of 6A.
  • IP20 ingress protection for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Factories and manufacturing facilities
  • Commercial: Office buildings and retail spaces
  • Residential: Homes with advanced energy monitoring needs
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager 3 Phase kWhmeter via CT 1A or 5A 4M S0 MID is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.

ECP300C (ECP300C, 179 Kb) [Download]

reach_declaration_ECP300C3.pdf (reach_declaration_ECP300C3.pdf, 103 Kb) [Download]

rohs_declaration_ECP300C3.pdf (rohs_declaration_ECP300C3.pdf, 104 Kb) [Download]

6LE005420B_Inst_ECP300C_DE_EN.pdf (6LE005420B_Inst_ECP300C_DE_EN.pdf, 3,688 Kb) [Download]

(ENERGY_METERS_SPECIFICATIONS_AND_TECHNICAL_GUIDE.pdf, 1,342 Kb) [Download]

(ENERGYMETERS_BROCHURE.pdf, 15,812 Kb) [Download]

EUDoC_0025.04-2024.pdf (EUDoC_0025.04-2024.pdf, 466 Kb) [Download]
