3 Phase kWhmeter via CT 1A or 5A 4M MODBUS MID

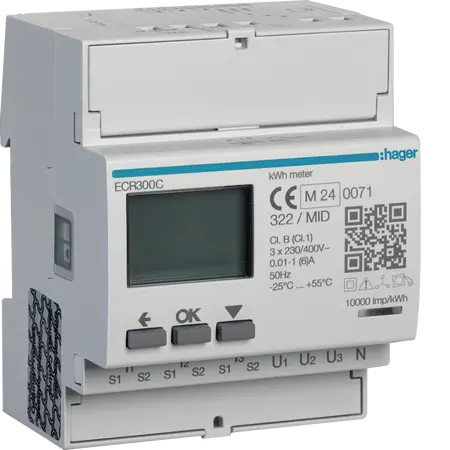

3 Phase kWh Meter via CT 1A/5A | MODBUS 4M | Optical Pulse by Hager

BRAND: :hager

SKU: ECR300C

$517.50 List price: $661.70

+ −

30 Days Return Delivery Options

3 phase kWh meter with MODBUS connectivity and optical pulse generator—ideal for industrial and commercial energy monitoring. Built for accurate energy measurement, with 5A rated current and 4M module size.

Description
Attachments

Product Name/Title: 3 Phase kWhmeter via CT 1A or 5A 4M MODBUS MID

Brand: Hager

SKU: ECR300C

Alternatively Known As: 3 Phase Energy Meter, MODBUS kWh Meter, CT Meter

Technical Specifications

Architecture Bus system: MODBUS
Type of pole: 3P+N
Electric current: Rated current 5 A
Maximum measuring circuit current: 6 A
Number of modules: 4
Connectivity type: ModBus RS-485 3 wires
Type of pulse generator: Optical
Current measurement range: 0.01 - 6.0 A
Measurement range voltage Ph-N: 92 - 276 V
Measurement range voltage Ph-Ph: 160 - 480 V
Frequency measuring range: 45 - 65 Hz
Accuracy class: B
Ingress Protection (IP) class: IP20
Operating temperature: -25 - 55 °C
Storage/transport temperature: -25 - 70 °C
Power consumption: 2 VA
Total power loss under IN: 0.60 W
Dimensions (H x L x W): 90mm x 60mm x 72mm
Weight: 0.5 kg

Key Features

3-phase measurement with MODBUS connectivity
Rated current of 5 A and maximum measuring circuit current of 6 A
Optical pulse generator for accurate measurement

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Monitoring energy consumption in manufacturing facilities
Commercial: Energy management in office buildings
Residential: Energy monitoring in homes

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

RoHS and REACH compliant, contributing to reduced environmental impact.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager 3 Phase kWhmeter via CT 1A or 5A 4M MODBUS MID is available now for immediate purchase. Ideal for industrial and commercial energy monitoring.

ECR300C (ECR300C, 198 Kb) [Download]

reach_declaration_ECR300C3.pdf (reach_declaration_ECR300C3.pdf, 103 Kb) [Download]

rohs_declaration_ECR300C3.pdf (rohs_declaration_ECR300C3.pdf, 104 Kb) [Download]

(Modbus_table_Summary_V1_14.pdf, 836 Kb) [Download]

6LE005424B_Inst_ECR300C_DE_EN.pdf (6LE005424B_Inst_ECR300C_DE_EN.pdf, 3,162 Kb) [Download]

(ENERGY_METERS_SPECIFICATIONS_AND_TECHNICAL_GUIDE.pdf, 1,342 Kb) [Download]

(ENERGYMETERS_BROCHURE.pdf, 15,812 Kb) [Download]

(EUDoC_0025.04-2024.pdf, 466 Kb) [Download]
