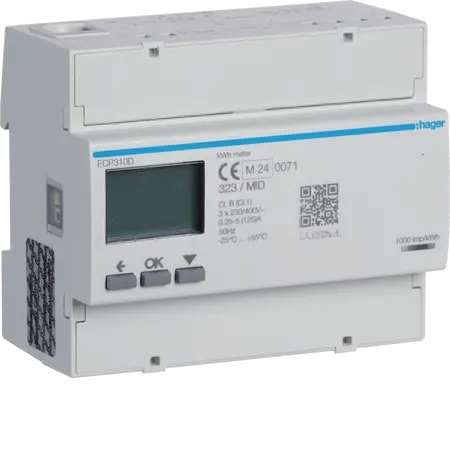

3 Phase kWh Meter Direct 125A | 6M S0 MID | IP20 Indoor Use by Hager
3 phase kWh meter with direct 125A connection and 6-module design—ideal for industrial and commercial energy measurement. Built for precision, with electronic accuracy class B and IP20 protection for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Phase kWhmeter direct 125A 6M S0 MID
Brand: Hager
SKU: ECP310D
Alternatively Known As: 3 Phase Energy Meter, 125A kWh Meter, MID Certified Energy Meter
Technical Specifications
- Type of pole: 3P+N
- Maximum measuring circuit current: 125 A
- Number of modules: 6
- Type of connection: Direct connection
- Current measurement range: 0.25 - 125.0 A
- Measurement range voltage Ph-N: 92 - 276 V
- Measurement range voltage Ph-Ph: 160 - 480 V
- Frequency measuring range: 45 - 65 Hz
- Power consumption: 2 VA
- Total power loss under IN: 0.60 W
- Operating temperature: -25 - 55 °C
- Storage/transport temperature: -25 - 70 °C
- Dimensions (H x L x W): 92mm x 60mm x 107mm
- Weight: 1.5 kg
Key Features
- Direct connection with a rated current of 125A.
- Electronic measurement with accuracy class B.
- IP20 ingress protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories and manufacturing facilities
- Commercial: Office buildings and retail spaces
- General: Any location requiring accurate energy measurement
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Designed to improve energy efficiency and reduce carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager 3 Phase kWhmeter Direct 125A 6M S0 MID is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise energy measurement.
