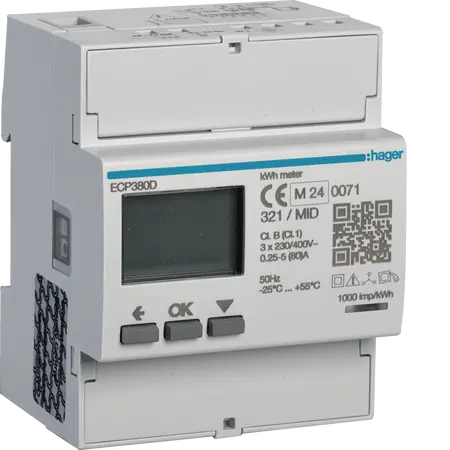

3 Phase kWh Meter Direct 80A | 4 Module | MID Certified by Hager
3 phase kWh meter with direct 80A connection and 4 modules—ideal for industrial and commercial energy measurement. Built for precision, with MID certification and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3 Phase kWhmeter direct 80A 4M S0 MID
Brand: Hager
SKU: ECP380D
Alternatively Known As: 3 Phase Energy Meter, kWh Meter, MID Certified Meter
Technical Specifications
- Type of pole: 3P+N
- Electric current: Rated current 80 A
- Maximum measuring circuit current: 80 A
- Number of modules: 4
- Type of connection: Direct connection
- Nominal tightening torque: 2 - 2 Nm
- Measuring system: Direct measurement
- Current measurement range: 0.25 - 80.0 A
- Measurement range voltage Ph-N: 92 - 276 V
- Measurement range voltage Ph-Ph: 160 - 480 V
- Frequency measuring range: 45 - 65 Hz
- Accuracy class: B
- Tariff type: T1...T2 (230 V AC)
- Calibrated: Yes
- Operating temperature: -25 - 55 °C
- Storage/transport temperature: -25 - 70 °C
- Power consumption: 2 VA
- Total power loss under IN: 0.60 W
- Dimensions (H x L x W): 92mm x 60mm x 72mm
- Weight: 0.5 kg
Key Features
- Direct connection for easy installation.
- Rated current of 80A with a maximum measuring circuit current of 80A.
- IP20 ingress protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories and manufacturing facilities
- Commercial: Office buildings and retail spaces
- Residential: Large homes with high energy consumption
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager 3 Phase kWhmeter Direct 80A 4M S0 MID is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise energy measurement.
