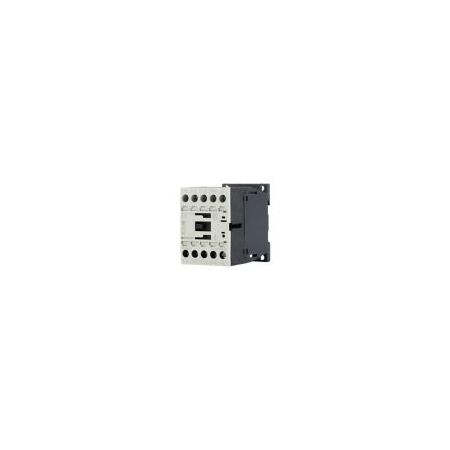

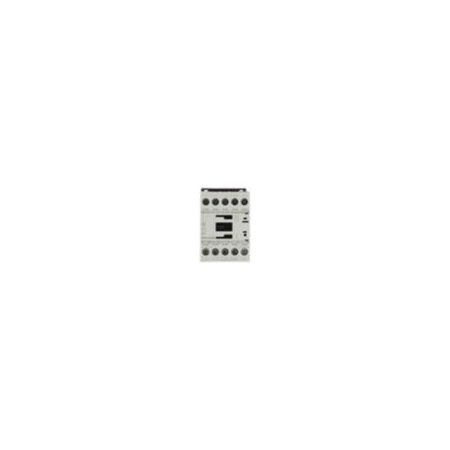

3-Pole AC Contactor 24V 50Hz | 22A Rated Current | 5.5kW Power | Finger-Proof by Eaton
This 3-pole AC contactor operates at 24V and 50Hz, with a rated current of 22A and a power capacity of 5.5kW—ideal for motor control and industrial automation. Built for efficiency and safety, it features a mechanical lifespan of 10 million operations and protection against direct contact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole AC Contactor 24V 50Hz | 22A Rated Current | 5.5kW Power | Finger-Proof by Eaton
Brand: Eaton
SKU: Y7-276677
Alternatively Known As: Eaton DILM9-10 Contactor, Moeller DILM9-10 Motor Contactor, 3-Pole AC Contactor 24V 50Hz
Technical Specifications
- Number of poles: 3
- Rated operational current (Ie) AC-1: 22 A at 380-415 V
- Rated operational current (Ie) AC-3: 9 A at 220-415 V
- Rated operational power AC-3: 4 kW at 380/400 V, 5.5 kW at 415 V
- Rated control supply voltage: 24 V AC, 50 Hz
- Rated insulation voltage (Ui): 690 V
- Rated impulse withstand voltage (Uimp): 8000 V AC
- Mechanical lifespan: 10,000,000 operations
- Operating temperature range: -25 °C to 60 °C
- Terminal capacity (flexible with ferrule): 1 x (0.75 - 2.5) mm²
- Terminal capacity (solid): 2 x (0.75 - 2.5) mm²
- Screw size: M3.5
- Tightening torque: 1.2 Nm
- Switching time closing delay: 15-21 ms
- Switching time opening delay: 9-18 ms
- Power consumption pick-up at 50 Hz: 24 VA
- Protection: Finger and back-of-hand proof (EN 50274)
- Dimensions (H x L x W): 68mm x 75mm x 45mm
- Weight: 0.24 kg
Key Features
- 3-pole contactor suitable for motors with efficiency class IE3
- Rated operational current up to 22 A at AC-1, 380-415 V
- Rated operational power up to 5.5 kW at AC-3, 415 V, 50 Hz
- Screw terminal connections with M3.5 screws
- Mechanical lifespan of 10,000,000 operations (AC operated)
- Protection against direct contact from front (finger and back-of-hand proof)
- Rated impulse withstand voltage of 8000 V AC
- Operating ambient temperature range from -25 °C to 60 °C
- Dual-frequency coil power consumption: 24 VA at 50 Hz
- Switching times: closing delay 15-21 ms, opening delay 9-18 ms
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper connection.
Applications
- Motor control and switching
- Industrial automation systems
- Electrical contactor applications for motors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Long mechanical lifespan reduces replacement frequency and waste
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller DILM9-10 3-pole contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
