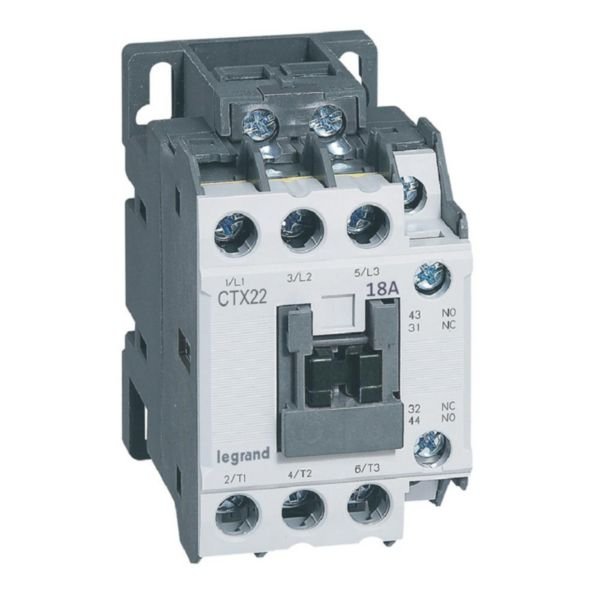

3-Pole Contactor CTX³ | 18A AC-3 Rating | Dual Voltage Coil | Mirror Contact NC | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416106
$103.00 List price: $128.30
+ −
30 Days Return Delivery Options
The 3-pole contactor CTX³ features an 18A AC-3 rating and a dual voltage coil, making it ideal for motor control and protection in industrial applications. With a mirror contact NC and a robust design for up to 15 million mechanical operations, this contactor ensures reliable performance for 3-phase motors up to 7.5 kW. Perfect for professional installations, it meets safety standards and is compatible with DIN rail mounting.

Product Name/Title: 3-Pole Contactor CTX³ | 18A AC-3 Rating | Dual Voltage Coil | Mirror Contact NC | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416106

Alternatively Known As: 3-pole motor contactor, Legrand CTX3 contactor, 18A AC-3 contactor, dual voltage coil contactor, mirror contact NC contactor

Technical Specifications
  • Rated operation current Ie at AC-3, 400 V: 18 A
  • Rated operation power at AC-3, 400 V: 7.5 kW
  • Rated operation current Ie at AC-1, 400 V: 32 A
  • Rated operation current Ie at AC-4, 400 V: 11 A
  • Rated operation power at AC-4, 400 V: 4 kW
  • Rated control supply voltage AC 50/60 Hz: 195.5-253 V
  • Number of main contacts normally open: 3
  • Number of auxiliary contacts: 1 normally open, 1 normally closed (mirror contact)
  • Type of electrical connection: Cable clamp
  • Endurance: 15 million mechanical operations, 2.5 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Dimensions (H x L x W): 85mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • 3-pole contactor with 18A AC-3 rating
  • Dual voltage coil with supply voltage 195.5-253 V AC 50/60 Hz
  • 1NO + 1NC auxiliary contacts with mirror contact NC according to IEC 60947-4-1
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 15 million mechanical and 2.5 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Compact size for optimized cabinet space
  • Coil supply possible on top or bottom side
  • DIN rail (35 mm top hat) and mounting plate compatible
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper operation.
Applications
  • Tertiary and industrial installations
  • Switching of inductive and non-inductive loads
  • Motor control and protection for 3-phase motors up to 7.5 kW
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand warranty terms for details.

Available Now

The Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
