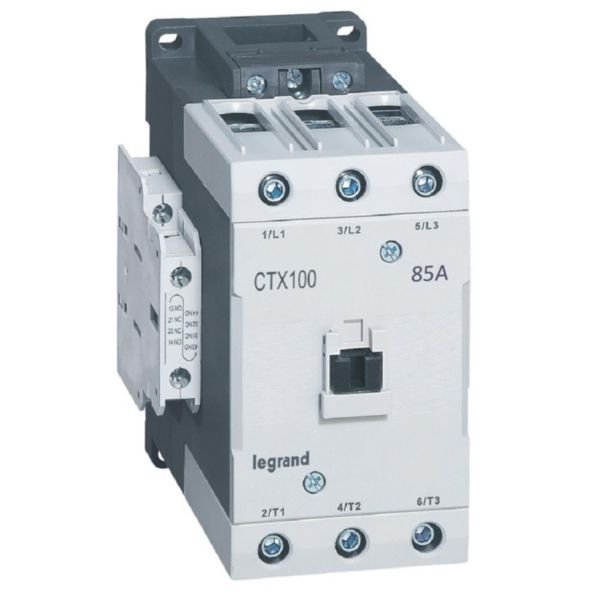

3-Pole Contactor CTX³ | 85A AC-3 Rating | 2NO+2NC Auxiliary Contacts | Modular Design | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416210
$533.40 List price: $664.70
+ −
30 Days Return Delivery Options
The CTX³ 3-pole contactor is designed for reliable motor control with an 85A AC-3 rating, making it ideal for industrial applications. Featuring 2 normally open and 2 normally closed auxiliary contacts, this modular contactor ensures high endurance with up to 12 million mechanical operations. Perfect for switching both inductive and non-inductive loads, it complies with IEC standards for safety and performance.

Product Name/Title: 3-Pole Contactor CTX³ | 85A AC-3 Rating | 2NO+2NC Auxiliary Contacts | Modular Design | @EA of 1 | by Legrand

Brand: Legrand

SKU: 416210

Alternatively Known As: 3-pole motor contactor, 85A contactor, Legrand CTX3 contactor, modular motor contactor

Technical Specifications
  • Rated operation current AC-3 (400V): 85 A
  • Rated operation power AC-3 (400V): 45 kW
  • Rated operation current AC-1 (400V): 135 A
  • Rated operation current AC-4 (400V): 62 A
  • Rated operation power AC-4 (400V): 30 kW
  • Auxiliary contacts: 2 normally open + 2 normally closed
  • Control supply voltage AC 50/60 Hz: 20.4-26.4 V
  • Electrical connection: Screw terminals
  • Mechanical operations endurance: 12 million
  • Electrical operations endurance: 2 million
  • Number of operation cycles (AC-3) per hour: 1800
  • Dimensions (H x L x W): 90mm x 70mm x 45mm
  • Weight: 1.5 kg
Key Features
  • 85A AC-3 rating for switching 3-phase motors up to 45 kW at 415V
  • 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts
  • Endurance of up to 12 million mechanical and 2 million electrical operations
  • Mountable on 35mm DIN rail or mounting plate
  • Coil supply can be connected on top or bottom side
  • Removable front cover for visual inspection of arc chambers and contacts
  • Complies with IEC 60947-4-1 standard
  • Cage terminals support a wide range of wire sizes
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper mounting on 35mm DIN rail or plate.
Applications
  • Industrial motor control and protection
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with IEC 60947-4-1 standard
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

The Legrand CTX³ 3-pole contactor is available for immediate purchase, ideal for industrial and tertiary motor control applications.
