3 Pole Load Break Switch | 32A 690V | Front Mount | IP20 by NHP
3 pole load break switch with 32A operation at 690V and front mounting—ideal for industrial and commercial power distribution. Built for reliability, with IP20 protection and durable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

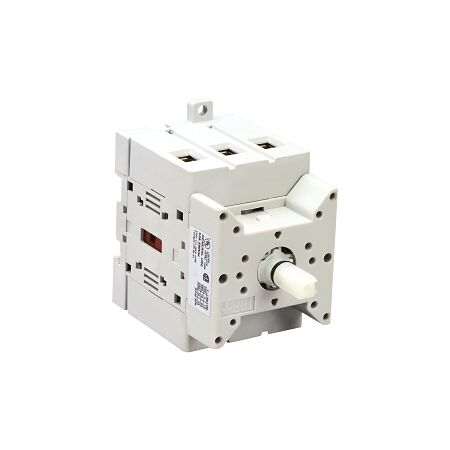

Product Name/Title: Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 32A
Brand: NHP
SKU: LE7321753
Alternatively Known As: L7 Load Break Switch, 3 Pole Switch, Off Load Switch
Technical Specifications
- Number of Poles: 3
- Rated Operation Power at AC 3 400 V: 11 kW
- Rated Operation Current IE at AC 21A 690V: 32 A
- Rated Operation Current IE at AC 1 690V: 32 A
- Ithe Thermal Current Enclosed: 40 A
- Ith Thermal Current Open: 50 A
- Mounting Method: Front mounting
- Material Housing: Plastic
- Wire Conductor Size Rigid Cable: 1.5-10 mm²
- Wire Conductor Size Flex Cable: 1.5-16 mm²
- Degree of Protection IP Front Side: IP20
- With Zero Off Position: Yes
- Mechanical Life Service Cycles: 200000 cycles
- Number of Switch Positions: 2
- Operating Temperature: -25-60 °C
- Dimensions (H x L x W): 63mm x 60mm x 45mm
- Weight: 1.0 kg
Key Features
- 3-pole design for effective load breaking.
- Rated for 32A operation at 690V.
- Front mounting for easy installation.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment control
- Commercial: Power distribution panels
- General: Any application requiring a reliable load break switch
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 32A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable load management.
