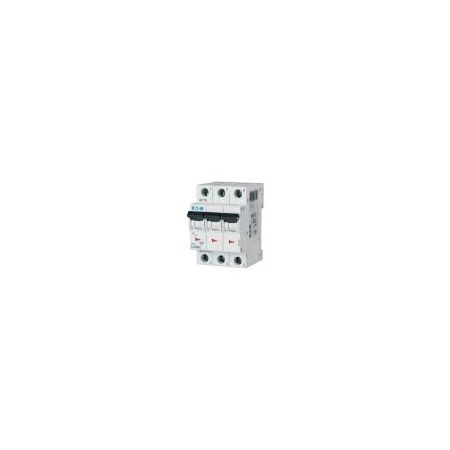

3-Pole Miniature Circuit Breaker 40A | Tripping Characteristic C | 10kA Switching Capacity | IP20 by Eaton
This 3-pole miniature circuit breaker with a 40A rating and tripping characteristic C is ideal for residential and commercial switchgear applications. Built for safety and reliability, it features a 10kA switching capacity and operates at a maximum voltage of 400V AC.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Miniature Circuit Breaker 40A | Tripping Characteristic C | 10kA Switching Capacity | IP20 by Eaton
Brand: Eaton
SKU: Y7-242478
Alternatively Known As: Eaton PLSM 3-pole MCB 40A, xPole PLS6/M Miniature Circuit Breaker, 3-pole circuit breaker 40 amp
Technical Specifications
- Number of poles: 3
- Tripping characteristic: C
- Rated current (In): 40 A
- Rated switching capacity (IEC/EN 60898-1): 10 kA
- Rated operational voltage (Ue): 400 V AC max
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Degree of protection: IP20
- Connectable conductor cross section (solid and multi-wired): 1 mm² to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Heat dissipation (current-dependent): 11.2 W
- Current limiting class: 3
- Overvoltage category: III
- Pollution degree: 2
- Dimensions (H x L x W): 75mm x 80mm x 52.5mm
- Weight: 0.36 kg
Key Features
- 3-pole miniature circuit breaker with tripping characteristic C
- Rated current: 40 A
- Rated switching capacity IEC/EN 60898-1: 10 kA
- Rated operational voltage up to 400 V AC
- Rated insulation voltage: 440 V
- Rated impulse withstand voltage: 4 kV
- Frequency rating: 50-60 Hz
- Degree of protection: IP20
- Connectable conductor cross section: 1 mm² to 25 mm²
- Ambient operating temperature range: -25 °C to 75 °C
- Additional equipment possible
- Current limiting class 3
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal device performance.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Designed for energy-efficient electrical protection to prevent electrical faults and reduce energy waste
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller series xPole PLSM-C40/3-MW miniature circuit breaker is available for immediate purchase, ideal for residential and commercial switchgear applications.
