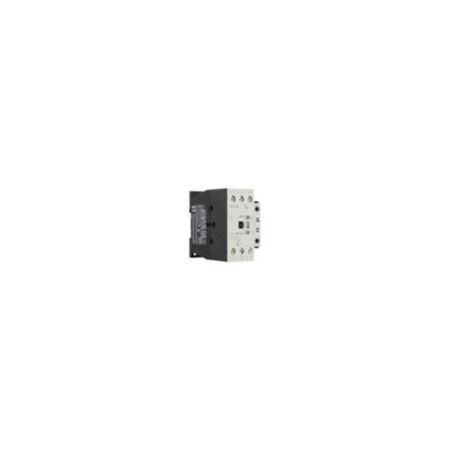

3-Pole Motor Contactor | 11 kW Rated Power | 45 A Current | 240V AC by Eaton

BRAND: Eaton
SKU: Y7-277121
$168.00 List price: $209.40
+ −
30 Days Return Delivery Options
This 3-pole motor contactor is rated for 11 kW at 380/400 V and supports up to 45 A current, making it ideal for industrial automation and motor control applications. Built for efficiency and durability, it features a high mechanical lifespan of 10 million operations and complies with international safety standards.

Product Name/Title: 3-Pole Motor Contactor | 11 kW Rated Power | 45 A Current | 240V AC by Eaton

Brand: Eaton

SKU: Y7-277121

Alternatively Known As: Eaton DILM25-10 Contactor, Moeller DILM Contactor, 3 Pole Motor Contactor, 240V AC Contactor, Industrial Motor Contactor

Technical Specifications
  • 3-pole contactor with 1 normally open main contact
  • Rated operational power: 11 kW at 380/400 V, 50 Hz
  • Rated operational current (Ie) at AC-1: 45 A
  • Rated operational current (Ie) at AC-3: 25 A
  • Rated control supply voltage: 240 V AC, 50 Hz
  • Mechanical lifespan: 10,000,000 operations
  • Operating temperature range: -25 °C to 60 °C
  • Protection: Finger and back-of-hand proof according to EN 50274
  • Rated insulation voltage (Ui): 690 V
  • Rated impulse withstand voltage (Uimp): 8000 V AC
  • Terminal capacity: up to 16 mm² flexible with ferrule
  • Power consumption pick-up at 50 Hz: 52 VA
  • Switching time (make contacts): 16-22 ms closing delay
  • Switching time (make contacts): 8-14 ms opening delay
  • Shock resistance: up to 10 g mechanical shock
  • Dimensions (H x L x W): 85mm x 97mm x 45mm
  • Weight: 0.43 kg
Key Features
  • 3-pole contactor suitable for motors with efficiency class IE3
  • Rated operational power up to 11 kW at 380/400 V, 50 Hz
  • Screw terminal connections for secure wiring
  • Protection against direct contact when actuated from front (finger and back-of-hand proof)
  • High mechanical lifespan of 10,000,000 operations
  • Rated operational current up to 45 A at AC-1 utilization category
  • Complies with multiple international standards including IEC 60947-4-1 and UL 508
  • Shock resistant and suitable for harsh industrial environments
  • Dual-frequency coil with power consumption optimized for 50 Hz operation
Professional Installation Requirements
  • Installation must be performed by a qualified electrician following local electrical codes and standards to ensure safety and compliance.
Applications
  • Motor control and switching applications
  • Industrial automation systems
  • Electrical control panels
  • AC induction motor starting and switching
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed for efficient motor control reducing energy waste
  • Long mechanical lifespan reduces replacement frequency and waste
  • Complies with international standards ensuring safe and reliable operation
Warranty Information

Standard Eaton warranty applies; typically 1-3 years depending on region and application. Refer to Eaton for specific warranty details.

Available Now

The Eaton Moeller DILM25-10 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.

Product specifications (skuPage.277121.pdf, 113 Kb) [Download]
