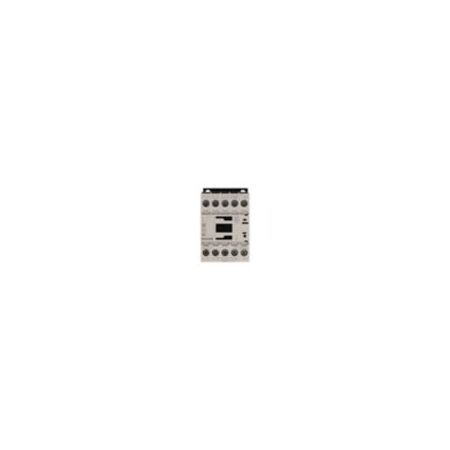

3-Pole Motor Contactor | 240V AC | 3 kW Power Rating | 10 Million Operations by Eaton
This 3-pole motor contactor operates at 240V AC and supports up to 3 kW power, making it ideal for motor control and industrial automation. Built for efficiency with a mechanical lifespan of 10 million operations, it ensures reliable performance in electrical control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3-Pole Motor Contactor | 240V AC | 3 kW Power Rating | 10 Million Operations by Eaton
Brand: Eaton
SKU: Y7-276574
Alternatively Known As: Eaton DILM7-01 Contactor, 3 Pole Motor Contactor, 240V AC Contactor, Eaton Moeller DILM Contactor
Technical Specifications
- Rated operational current (Ie) at AC-3, 380/400 V: 7 A
- Rated operational power at AC-3, 380/400 V, 50 Hz: 3 kW
- Number of poles: 3
- Rated control supply voltage (Us): 240 V AC, 50 Hz
- Mechanical lifespan: 10,000,000 operations
- Operating temperature range: -25 °C to 60 °C
- Terminal capacity (flexible with ferrule): 2 x (0.75 - 2.5) mm²
- Rated impulse withstand voltage (Uimp): 8000 V AC
- Protection: Finger and back-of-hand proof according to EN 50274
- Switching time (make contacts, closing delay): 15-21 ms
- Switching time (make contacts, opening delay): 9-18 ms
- Power consumption, pick-up, 50 Hz: 24 VA
- Rated breaking capacity at 380/400 V: 70 A
- Dimensions (H x L x W): 68mm x 75mm x 45mm
- Weight: 0.24 kg
Key Features
- 3-pole contactor suitable for motors with efficiency class IE3
- Rated operational power up to 3 kW at 380/400 V, 50 Hz
- Screw terminal connections with M3.5 screws
- Mechanical lifespan of 10,000,000 operations
- Protection against direct contact from front (finger and back-of-hand proof)
- Rated impulse withstand voltage of 8000 V AC
- Operating ambient temperature range from -25 °C to 60 °C
- Complies with IEC/EN 60947 standards
- Rated control supply voltage of 240 V AC at 50 Hz
- High short-circuit current rating and thermal current capacity
Professional Installation Requirements
- Installation must be performed by a qualified electrician following local electrical codes and standards to ensure safety and compliance.
Applications
- Motor control and switching
- Industrial automation systems
- Electrical control panels
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed for efficient motor control reducing energy waste
- Durable construction extends product life and reduces replacement frequency
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILM7-01 Contactor is available for immediate purchase, ideal for industrial motor control and automation applications.
