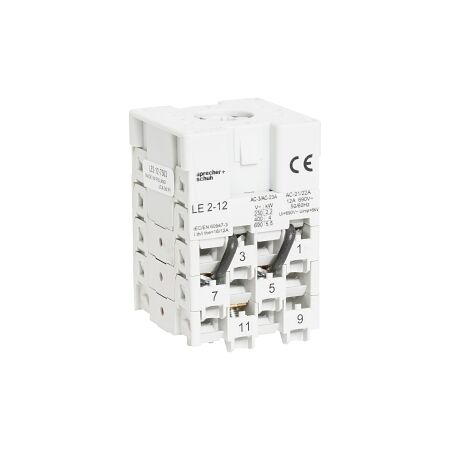

3 Pole Reversing Cam Switch | 12A 690V | Panel Mount by NHP

BRAND: NHP
SKU: LE2127303
$165.00 List price: $219.10
+ −
30 Days Return Delivery Options
Cam switch with 3 pole reversing capability and 12A at 690V rating—ideal for industrial machinery control and commercial equipment switching. Built for durability, with easy front panel mounting.

Product Name/Title: Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Reversing 12A Panel Mount

Brand: NHP

SKU: LE2127303

Alternatively Known As: Cam Switch, Reversing Switch, 3 Pole Switch

Technical Specifications
  • Rated operation power at AC 3 400 V: 4 kW
  • Rated operation current at AC 15 230 V: 5 A
  • Rated operation current at AC 15 400 V: 3 A
  • Rated operation current at AC 22A 690 V: 12 A
  • Rated operation current at AC 22A 220-500 V: 12 A
  • Rated operation current at AC 21A 690 V: 12 A
  • Rated operation current at AC 1 690 V: 12 A
  • Thermal current enclosed: 12 A
  • Thermal current open: 16 A
  • Type of electrical connection of main circuit: Screw connection
  • Material housing: Plastic
  • Wire conductor size rigid cable: 1-2.5 mm²
  • Wire conductor size flex cable: 1-2.5 mm²
  • Degree of protection IP front side: IP20
  • Mechanical life service cycles: 1,000,000 cycles
  • Number of switch positions: 3
  • Operating temperature: -25-60 °C
  • Dimensions (H x L x W): 42mm x 64mm x 42mm
  • Weight: 0.5 kg
Key Features
  • 3 pole reversing switch for versatile operation.
  • Rated for 12A at 690V, suitable for heavy-duty applications.
  • Front mounting design for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery control and automation
  • Commercial: Equipment switching and power management
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Reversing 12A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

LE2127303-AU-Cam-Switch-Body-Datasheet.pdf (LE2127303-AU-Cam-Switch-Body-Datasheet.pdf, 269 Kb) [Download]
