32 Amp Insulated Screw Connectors | 2 x 6mm² Cable Size | 240/415V Rated | Clear Polycarbonate by Cabac
Cabac 32 Amp Single Screw Insulated Connectors with Wire Protector Plate 100 Pack offers heavy-duty, reliable electrical connections with visual termination inspection and robust materials for safe 240/415V applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

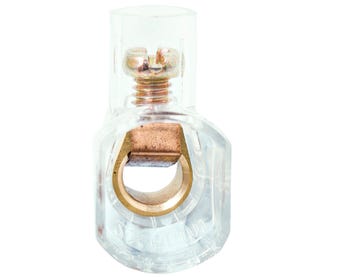

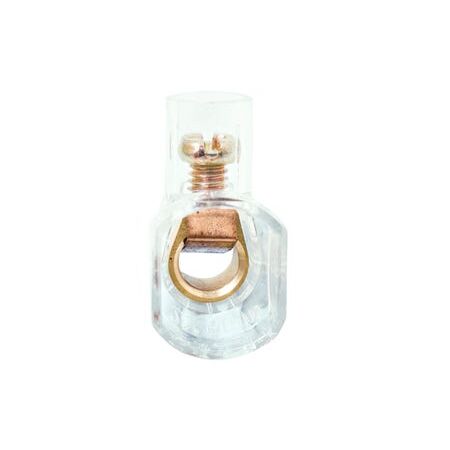

Product Name/Title: 32 Amp Single Screw Insulated Connectors With Wire Protector Plate 100 Pack
Brand: Cabac
SKU: C32A1-P
Alternatively Known As: Insulated Screw Terminal Connector, Wire Protector Screw Connector, Heavy Duty Electrical Connector
Technical Specifications
- Maximum Cable Size: 2 x 6mm²
- Voltage Rating: 240/415V
- Current Rating: 32 Amps
- Housing Material: Clear Polycarbonate
- Body Material: Brass
- Wire Protector Plate Material: Copper
- Screw Material: Steel
- Dimensions (H x L x W): 15mm x 50mm x 30mm
- Weight: 1.2 kg
Key Features
- Heavy-duty insulated screw connector suitable for up to 2 x 6mm² cables
- Fitted with wire protection plate that clamps more than 80% of barrel hole
- Clear polycarbonate housing allows visual inspection of termination
- Rated for normal 240/415V applications at 32 Amps
- Brass body with copper wire protector plate and steel screw for durability
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical installations requiring secure cable connections
- Industrial and commercial electrical wiring
- General electrical power connectivity tasks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Clear housing enables easy inspection, reducing errors and rework
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac 32 Amp Single Screw Insulated Connectors with Wire Protector Plate 100 Pack is available now for immediate purchase. Ideal for electrical power connectivity in industrial, commercial, and residential applications.
