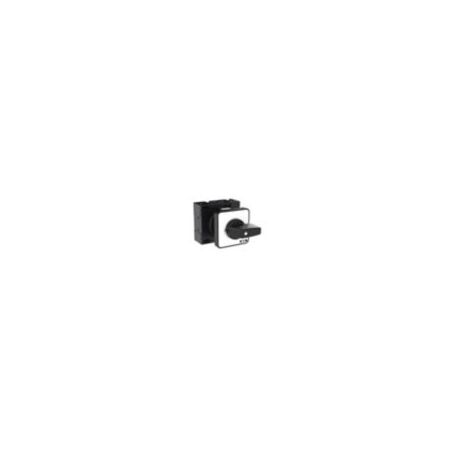

32A Flush Mount On-Off Switch | NEMA 12 & IP65 Rated | 500,000 Operations | Eaton
The 32A flush mount on-off switch is designed for industrial control panels and motor disconnect applications. With a NEMA 12 and IP65 rating, it ensures durability and reliability, making it ideal for demanding environments. Built for professional installation, it features a mechanical lifespan of 500,000 operations and a rated breaking capacity of up to 260A.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 32A Flush Mount On-Off Switch | NEMA 12 & IP65 Rated | 500,000 Operations | Eaton
Brand: Eaton
SKU: Y7-76073
Alternatively Known As: Eaton T3 On-Off Switch, Eaton Moeller T3 Switch, 32A Flush Mount Switch, Industrial On-Off Switch
Technical Specifications
- Rated operational current (Ie) at AC-3 up to 23.7 A
- Rated breaking capacity at 220/230 V to 260 A
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Mechanical lifespan: 500,000 operations
- Operating frequency: 1200 operations/hour
- Degree of protection: NEMA 12, IP65 front side
- Operating temperature range: -25 °C to 50 °C
- Terminal capacity: 0.75 - 6 mm² flexible or solid conductors
- Tightening torque: 1.6 Nm for screw terminals
- Switching angle: 90°
- Shock resistance: 15 g mechanical
- Dimensions (H x L x W): 54mm x 79mm x 61mm
- Weight: 0.11 kg
Key Features
- 32 A rated operational current
- Flush mounting design with black thumb grip and front plate
- 2 pole, 1 contact unit
- Degree of protection: NEMA 12, IP65 front side
- Mechanical lifespan of 500,000 operations
- Rated breaking capacity up to 260 A at 220-415 V
- Operating temperature range -25 °C to 50 °C
- Shock resistance 15 g according to IEC/EN 60068-2-27
- Rated impulse withstand voltage 6000 V AC
- Safe isolation 440 V AC between contacts
- Switching angle 90°
- Suitable for front mounting 4-hole branch circuits
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial control panels
- Motor disconnect applications
- Branch circuit switching in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- High operational lifespan minimizes resource consumption
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller® series T3 On-Off switch is available for immediate purchase, ideal for industrial and motor control applications.
