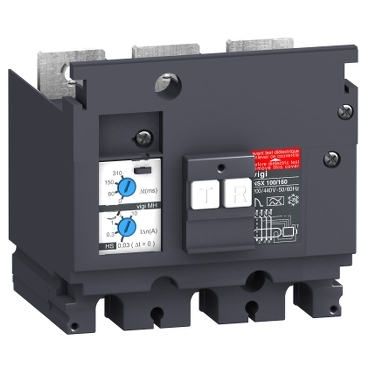

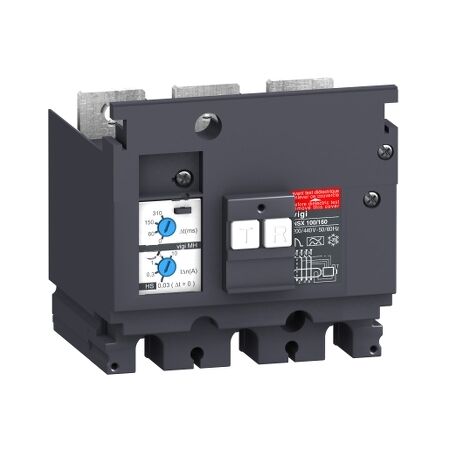

3P Earth Leakage Protection Module | 440-550V AC | Adjustable Sensitivity 30mA-10A | by Clipsal
The 3P Earth Leakage Protection Module is designed for ComPact NSX 250 circuit breakers, providing reliable earth leakage protection with a wide voltage range of 440-550V AC. With adjustable sensitivity from 30 mA to 10 A, this module enhances safety in industrial and commercial electrical installations, ensuring compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P Earth Leakage Protection Module | 440-550V AC | Adjustable Sensitivity 30mA-10A | by Clipsal
Brand: Clipsal
SKU: SCHLV431533
Alternatively Known As: VIGI M earth leakage module, NSX 250 earth leakage add-on, Clipsal SCHLV431533, 3P VIGI M module, ComPact NSX VIGI
Technical Specifications
- Type: Earth-leakage add-on protection module
- Compatibility: ComPact NSX 250 circuit breakers
- Number of Poles: 3P
- Rated Voltage: 440-550V AC
- Sensitivity Range: 30 mA to 10 A (adjustable)
- Module Type: MH type VIGI
- Mounting: Add-on to circuit breaker
- Function: Earth leakage protection
- Dimensions (H x L x W): 130mm x 80mm x 105mm
- Weight: 0.7 kg
Key Features
- Earth-leakage add-on protection module for ComPact NSX 250 circuit breakers
- Suitable for 3-pole (3P) systems
- Wide voltage range: 440-550V AC
- Adjustable sensitivity: 30 mA to 10 A
- MH type VIGI module for enhanced safety
- Provides reliable protection against earth leakage faults
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Industrial electrical panels
- Commercial switchboards
- Protection of three-phase equipment
- Distribution boards in factories and large buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Supports reliable operation of energy-efficient electrical systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for industrial and commercial electrical installations requiring advanced earth-leakage protection.
