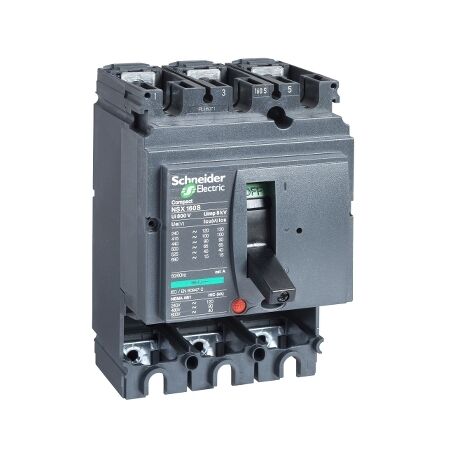

3P NSX160S Circuit Breaker Frame | 160A Rated Current | 100kA Breaking Capacity | by Clipsal
The 3P NSX160S Circuit Breaker Frame is designed for robust electrical distribution, rated for 160A with a high breaking capacity of 100kA at 415VAC. Ideal for commercial and industrial applications, this frame is supplied without a trip unit, allowing for custom protection configurations. Its reliable design ensures safety and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P NSX160S Circuit Breaker Frame | 160A Rated Current | 100kA Breaking Capacity | by Clipsal
Brand: Clipsal
SKU: SCHLV430391
Alternatively Known As: ComPact NSX160S Frame, 3 Pole NSX160S, NSX160S Circuit Breaker Frame, LV430391, Schneider NSX160S Basic Frame
Technical Specifications
- Type: Circuit breaker basic frame (without trip unit)
- Poles: 3
- Rated current: 160A
- Breaking capacity: 100kA at 415VAC 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Compatible with ComPact NSX trip units
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 3.5 kg
Key Features
- 3 pole (3P) basic frame for ComPact NSX160S circuit breaker
- Rated for 160A maximum current
- High breaking capacity: 100kA at 415VAC 50/60Hz
- Supplied without trip unit for custom protection configuration
- Robust and reliable design for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Switchboards and panelboards
- Main and sub-main circuit protection
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports safe and efficient electrical distribution, reducing risk of electrical fires and system failures.
- Designed for long service life, minimizing replacement waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P NSX160S Without TRIP Unit C (SCHLV430391) is available for immediate purchase. Ideal for commercial and industrial electrical distribution applications.
