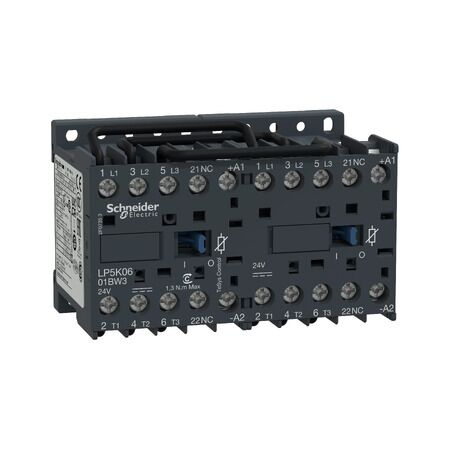

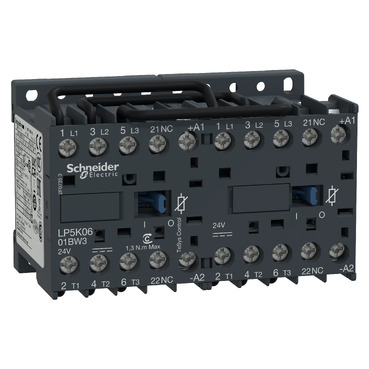

3P REVER Contactor K 9A 24VDC | 3-Pole Design | High Electrical Endurance | Compact Installation | @Pack of 1 | by Clipsal
The 3P REVER Contactor K 9A 24VDC is designed for reliable motor control in industrial automation applications. With a 3-pole configuration and a rated operational current of 9A, this contactor ensures high electrical endurance and efficient performance. Its compact design allows for easy installation in various settings, making it ideal for HVAC systems, lighting control, and switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P REVER Contactor K 9A 24VDC | 3-Pole Design | High Electrical Endurance | Compact Installation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLP5K0901BW3
Alternatively Known As: 3 Pole Reversing Contactor, 9A 24VDC Contactor, Clipsal Motor Contactor, SCHLP5K0901BW3
Technical Specifications
- Number of Poles: 3
- Rated Operational Current: 9A (AC-3)
- Coil Voltage: 24V DC
- Rated Insulation Voltage: 690V
- Conventional Thermal Current: 20A
- Electrical Endurance: 1 million operations
- Mechanical Endurance: 10 million operations
- Mounting: DIN rail or screw
- Ambient Temperature: -5°C to +60°C
- Dimensions (H x L x W): 80mm x 85mm x 45mm
- Weight: 0.3 kg
Key Features
- 3-pole contactor for reliable switching
- Rated operational current: 9A
- Coil voltage: 24V DC
- Compact design for easy installation
- Suitable for AC-3 applications
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Motor control circuits
- Industrial automation panels
- HVAC systems
- Lighting control
- Switchboards
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Energy-efficient coil reduces power consumption
- Long operational life minimizes replacement waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P REVER Contactor K 9A 24VDC (SCHLP5K0901BW3) is available for immediate purchase. Ideal for industrial motor control and automation applications.
