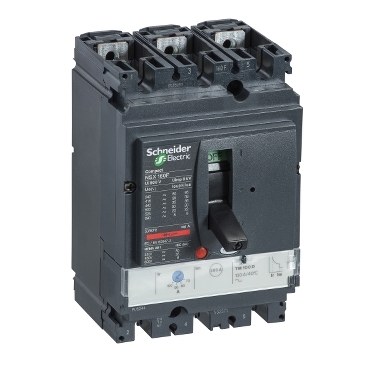

3P3T TM160T NSX160H Circuit Breaker | 160A Rated Current | 36kA Breaking Capacity | Compact Design | @Pack of 1 | by Clipsal
The 3P3T TM160T NSX160H Circuit Breaker is engineered for commercial and industrial electrical distribution systems, featuring a robust 160A rated current and a high breaking capacity of 36kA at 415V AC. With its thermal-magnetic trip unit, it ensures reliable overload and short-circuit protection, making it ideal for main and sub-main switchboards, panel boards, and control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3P3T TM160T NSX160H Circuit Breaker | 160A Rated Current | 36kA Breaking Capacity | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV430670
Alternatively Known As: NSX160H Circuit Breaker, 3P3T TM160T, SCHLV430670, Schneider NSX160H, 160A MCCB, Compact NSX160H
Technical Specifications
- Rated current: 160A
- Number of poles: 3
- Trip unit: TM160T (thermal-magnetic)
- Breaking capacity: 36kA at 415V AC
- Rated operational voltage: 690V AC
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- 3 pole, 3 trip (3P3T) configuration for comprehensive circuit protection
- TM160T thermal-magnetic trip unit for reliable overload and short-circuit protection
- NSX160H frame with high breaking capacity
- Compact design for easy integration into switchboards
- Robust construction for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Protection of electrical circuits in buildings
- Panel boards and control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy efficiency by providing reliable circuit protection and reducing downtime.
- Designed for long service life, minimizing replacement waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 3P3T TM160T NSX160H Circuit Breaker (SCHLV430670) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
