Trade Discount 46%

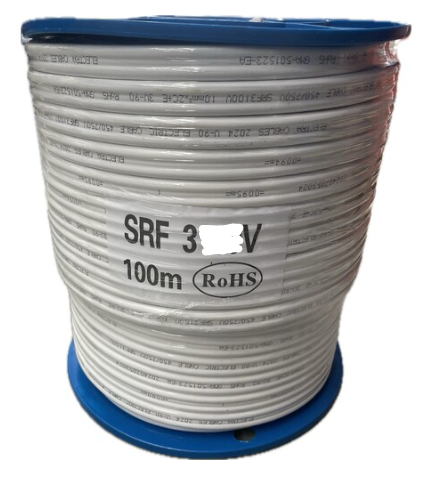

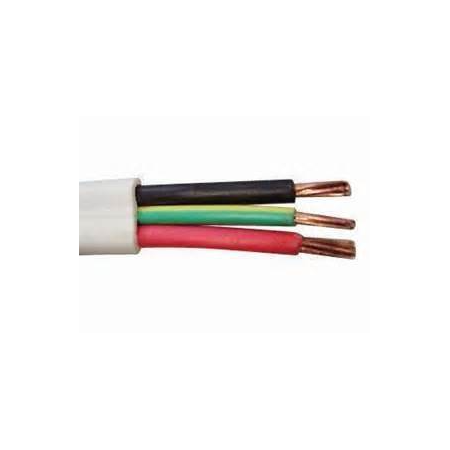

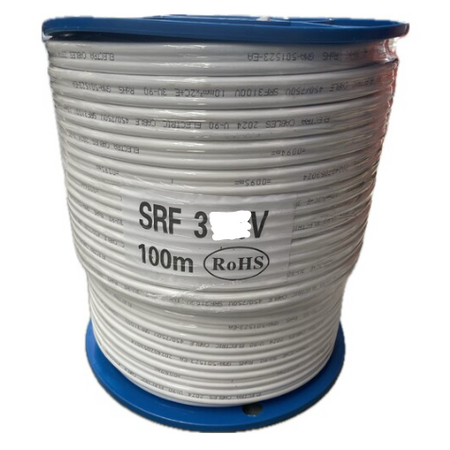

4.0mm2 Twin and Earth V90 Cable | 450/750V | 100m Roll
Electra Cables 4.0mm2 Twin and Earth V90 Cable is a 450/750V flat TPS cable with LSZH insulation and sheath, suitable for general wiring in domestic, commercial, and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Twin and Earth Cable, Flat TPS Cable, V90 Cable, 4mm2 Electrical Cable
Technical Specifications
- Conductor: Plain annealed copper (AS/NZS 1125)
- Insulation: X-HF-90, 90°C LSZH
- Sheath: X-HF-90, 90°C LSZH
- Voltage Rating: 450/750V
- Standard: AS/NZS 5000.2
- Operating Temperature: 75°C
- Dimensions (H x L x W): 5mm x 100000mm x 15mm
- Weight: 8.9 kg
Key Features
- Flat TPS cable with easy-peel sheath
- V-90 insulated, PVC sheathed
- Low Smoke Zero Halogen (LSZH) construction
- Plain annealed copper conductor (AS/NZS 1125)
- Insulation and sheath rated X-HF-90, 90°C LSZH
- Standard compliance with AS/NZS 5000.2
- Normal operating temperature of 75°C
Professional Installation Requirements
- Installation should be performed by a licensed electrician following local electrical codes and standards.
Applications
- General wiring in domestic, commercial, and industrial installations
- Unenclosed wiring
- Closed in conduit
- Buried direct or in underground ducts where not subject to mechanical damage
Standards & Compliance
- AS/NZS 5000.2 – Electrical cables – Polymeric insulated
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) materials reduce toxic emissions in case of fire
- Durable insulation and sheath extend cable lifespan, reducing waste
Warranty Information
Warranty terms as per Electra Cables standard policy; typically covers manufacturing defects.
Available Now
Available for immediate purchase, ideal for domestic, commercial, and industrial electrical wiring applications.
