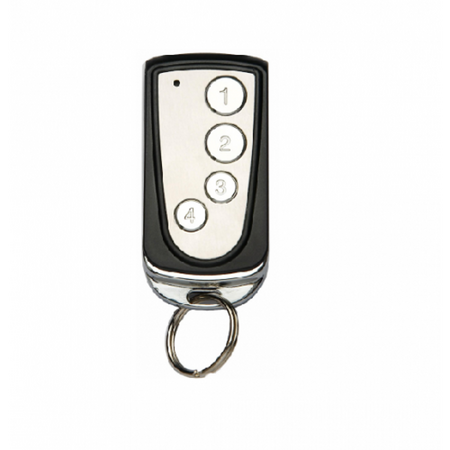

4 Button Wiegand Remote | 433 MHz | 100m Range | Long Battery Life by Ness
4 button Wiegand remote with 433 MHz frequency and 100m open-air range—ideal for access control in residential and commercial properties. Built for reliability, with long battery life and low battery indication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C - WEIGAND REMOTE - 4 BUTTON
Brand: Ness
SKU: 101-107
Alternatively Known As: 4 Button Wiegand Remote, Activor Remote Control, Ness Remote Control
Technical Specifications
- Operating Voltage: 6V powered by 2 x lithium batteries CR2032
- Transmitting power: <10mW
- Current: <1uA standby; 12mA max.
- Operating Range: 100m (open-air)
- SAW resonator locked (+/- 75KHz); Superhet technology
- Dimensions (H x L x W): 100mm x 20mm x 50mm
- Weight: 0.1 kg
Key Features
- 433 MHz frequency with options available on request.
- Keeloq rolling code with 4.3 billion combinations.
- Operating range of 100m in open-air conditions.
- Long battery life of 3 years under normal operating conditions.
- Low battery indication and auto shutoff feature.
Professional Installation Requirements
- Professional installation is recommended for optimal integration with access control systems.
Applications
- Access control for residential and commercial properties
- Integration with Activor Wiegand Receivers
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long battery life reduces waste from frequent battery replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The C - WEIGAND REMOTE - 4 BUTTON is available now for immediate purchase. Ideal for access control applications in various settings.
