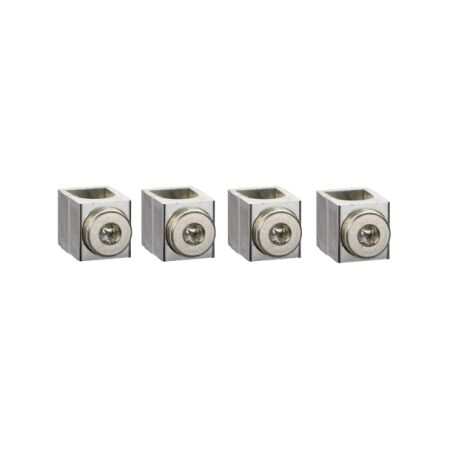

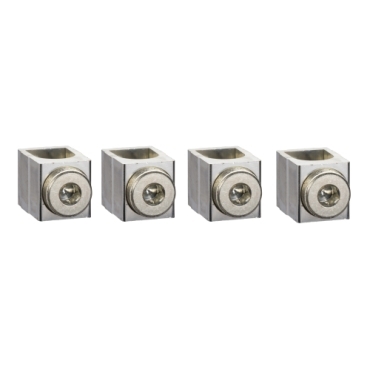

4 Connectors (1x 25-95MM²) | Heavy-Duty 4-Way Connector | Flame-Retardant Housing | @Pack of 1 | by Clipsal
The 4 Connectors (1x 25-95MM²) by Clipsal are designed for secure electrical connections, accommodating cable sizes from 25mm² to 95mm². With a heavy-duty 4-way design and flame-retardant thermoplastic housing, these connectors ensure high mechanical strength and electrical conductivity, making them ideal for industrial, commercial, and residential wiring installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Connectors (1x 25-95MM²) | Heavy-Duty 4-Way Connector | Flame-Retardant Housing | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429228
Alternatively Known As: Clipsal cable connector, 4-way electrical connector, heavy duty connector block, SCHLV429228, 25-95mm² connector
Technical Specifications
- Number of connectors: 4
- Cable size compatibility: 25-95mm²
- Material: Flame-retardant thermoplastic housing
- Conductor material: Copper/Aluminium
- Voltage rating: 1000V AC/DC
- Current rating: Up to 232A (depending on cable size)
- Temperature range: -40°C to +120°C
- Screw type: Hex head
- Dimensions (H x L x W): 40mm x 120mm x 60mm
- Weight: 0.25 kg
Key Features
- Accommodates cable sizes from 25mm² to 95mm²
- Heavy-duty 4-way connector for secure electrical connections
- Suitable for copper and aluminium conductors
- High mechanical strength and electrical conductivity
- Flame-retardant and impact-resistant housing
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian standards and safety regulations.
Applications
- Electrical distribution boards
- Industrial switchboards
- Commercial and residential wiring installations
- Power distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Supports efficient power distribution, minimizing energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 4 Connectors (1x 25-95MM²) SCHLV429228 is available for immediate purchase. Ideal for secure and reliable electrical connections in industrial, commercial, and residential installations.
