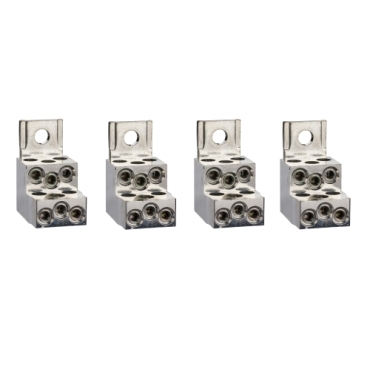

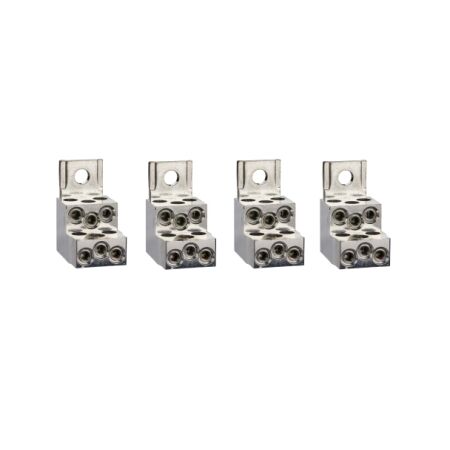

4 Connectors (6x 1.5-35MM²) PH | Flame-Retardant Polyamide | Screw-Type Terminal | @Pack of 1 | by Clipsal
The 4 Connectors (6x 1.5-35MM²) PH are designed for secure electrical connections, accommodating up to 6 cables per connector. Made from high-quality flame-retardant polyamide, these connectors ensure durability and safety in electrical distribution boards and control panels. Ideal for licensed electricians, they comply with Australian standards for reliable installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4 Connectors (6x 1.5-35MM²) PH | Flame-Retardant Polyamide | Screw-Type Terminal | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429249
Alternatively Known As: Terminal Block, Electrical Connector Block, Junction Block, 6-Way Terminal Connector, Clipsal Terminal Block
Technical Specifications
- Number of connectors: 4
- Cable capacity: 6 x 1.5-35mm² per connector
- Material: Polyamide (PA66), flame-retardant
- Rated voltage: 690V
- Rated current: 125A
- Operating temperature: -40°C to +105°C
- Screw type: M6 steel, zinc-plated
- Dimensions (H x L x W): 35mm x 120mm x 80mm
- Weight: 0.15 kg
Key Features
- Accommodates 6 cables per connector from 1.5mm² to 35mm²
- High-quality polyamide housing for durability and insulation
- Screw-type terminal for secure and reliable connections
- Flame-retardant and self-extinguishing material
- Clear marking for easy identification
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian standards and electrical safety.
Applications
- Electrical distribution boards
- Industrial control panels
- Commercial and residential wiring installations
- Switchboards and junction boxes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reusable and recyclable materials reduce waste
- Secure connections minimize energy loss and improve system efficiency
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal 4 Connectors (6x 1.5-35MM²) PH Terminal Block SCHLV429249 is available for immediate purchase. Ideal for electrical distribution boards, control panels, and wiring installations.
