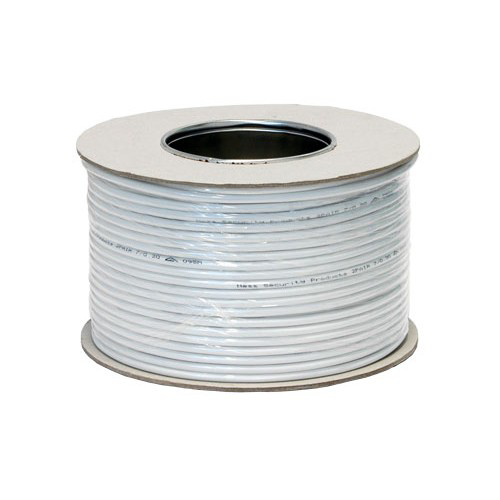

4 Core Security Cable 7/0.20 100m Reel Ness
Ness security cable features 4 cores, 7/0.20 conductors and a 100m reel. Ideal for alarm and security wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 4-Core Alarm Cable, Security Alarm Cable, Intruder Alarm Cable, 4-Core Control Cable
Technical Specifications
- Product Code: CAB251
- Cable Type: Unscreened security and alarm cable
- Number of Cores: 4
- Conductor Construction: 7 strands of 0.20mm wire per core
- Nominal Conductor Area: Approximately 0.22mm² per core
- Cable Length: 100m reel
- Insulation and Sheath: PVC
- Voltage Rating: Typically 100V DC or 32V AC for equivalent 7/0.20 security cable
- Conductor Gauge: Approximately 24 AWG
- Termination: Unterminated
- Dimensions (H x L x W): 70mm x 220mm x 220mm
- Weight: 2.9 kg
Key Features
- Four-core configuration for alarm and security system wiring
- Flexible stranded conductors for routing through wall cavities and ceilings
- Supplied as a 100m reel for smaller installations and shorter cable runs
- Suitable for PIR sensors, reed switches, keypads and alarm panel connections
- Suitable for low-voltage signalling applications
- Compact reel format for trade storage and transport
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical installer. This is low-voltage cable, but installation must follow the alarm system manufacturer's requirements and applicable Australian wiring regulations.
Applications
- Intruder alarm systems
- PIR motion sensor wiring
- Magnetic reed switch and door contact wiring
- Alarm panel to keypad connections
- Access control and detection systems
- Low-voltage control and signalling circuits
Standards & Compliance
- AS/NZS 1125 for stranded copper conductors and conductor construction; applicability to this specific Ness SKU should be confirmed from the supplier
- AS/NZS 3808 for PVC insulation and sheath materials; applicability to this specific Ness SKU should be confirmed from the supplier
Environmental Benefits
- Copper conductors can be recovered and recycled at end of life
- PVC cable materials may be recoverable through appropriate cable recycling programmes
- Long service life in fixed low-voltage installations can reduce replacement waste
- Supplied in a reel format to help reduce offcut waste during installation
Warranty Information
Ness Corporation states that Ness manufactured or supplied products are generally covered by a 3-year warranty from the date of purchase, unless otherwise specified. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness Corporation and authorised Australian security, electrical and HVAC distributors.
