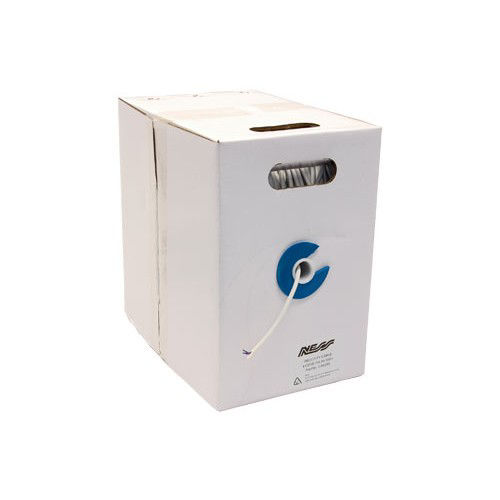

4 Core Security Cable 7/0.20 300m Reel Ness
Ness security cable features 4 cores, 7/0.20 conductors and a 300m length. Ideal for alarm and security wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 4 Core Alarm Cable, Security Cable 7/0.20, Ness CAB255 Cable
Technical Specifications
- SKU: CAB255
- Core Count: 4 cores
- Conductor Construction: 7 strands of 0.20mm diameter per core
- Approximate Conductor Area: 0.22mm² per core
- Cable Length: 300m
- Pack Format: Reel in box
- Intended Use: Wiring Ness security products including PIRs and reed switches
- Voltage Application: Extra-low-voltage security and alarm circuits; not for mains wiring
- Dimensions (H x L x W): 180mm x 300mm x 300mm
- Weight: 5 kg
Key Features
- Four-core construction for alarm and security system wiring
- 7/0.20 stranded conductors provide flexibility for installation
- 300m reel suits longer residential, commercial and security installations
- Suitable for connecting PIR motion sensors and reed switches
- Designed for use with Ness security products
Applications
- Intruder alarm systems
- PIR motion detector wiring
- Reed switch and magnetic contact wiring
- Security sensor and alarm device connections
- Residential, commercial and light-industrial security installations
Standards & Compliance
- Installation should follow AS/NZS 3000 requirements where applicable to the electrical installation
- AS/CA S008 and AS/CA S009 may apply where the cable forms part of customer telecommunications cabling; confirm product labelling and installation scope before use
Environmental Benefits
- Copper conductors can be recovered through established metal recycling streams at end of service life
- A 300m reel reduces packaging and handling per metre compared with multiple shorter cable lengths
- Durable cable construction can reduce replacement frequency and installation waste
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase unless otherwise specified, subject to Ness warranty terms and Australian Consumer Law.
Available Now
Available through Ness and authorised Australian security and electrical distributors.
