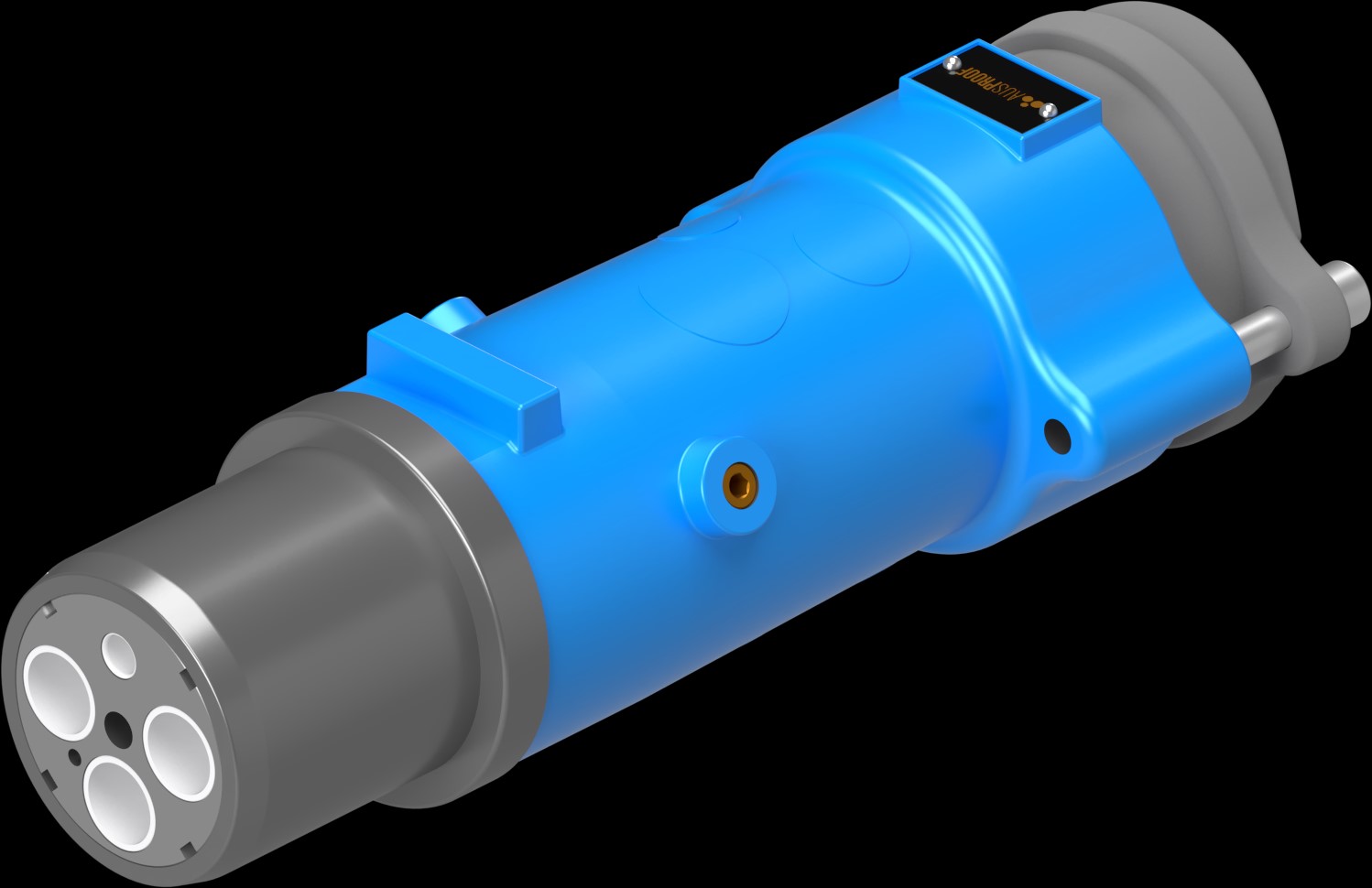

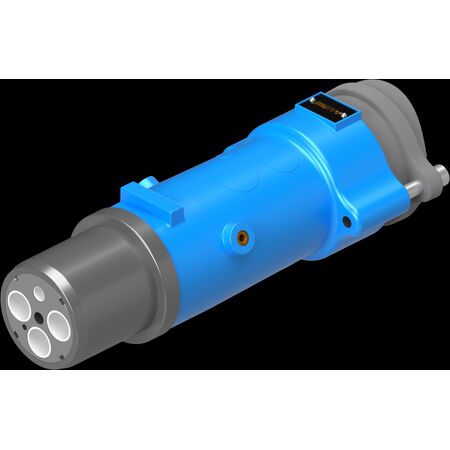

4 Pin Plug 300A | Quick Release & IP55 Rated | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS1448

$1,482.30 List price: $1,841.00

+ −

30 Days Return Delivery Options

The Ausproof 4 Pin Plug 300A features quick release functionality and IP55 ingress protection—ideal for mining and hazardous environments. Built for commercial applications, it offers durable stainless steel construction and easy flameproof repair.

Description

Product Name/Title: PL 1100V 300A 4 Pin Plug (90) 16-C 35-40-G (241.1)

Brand: Ausproof

SKU: RS1448

Alternatively Known As: Ex-certified 4 Pin Plug, Mining Plug, Flameproof Plug, Quick Release Industrial Plug

Technical Specifications

Operating Voltage: 660 to 3300V
Current Rating: 300 to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 9.0 KG
Dimensions (H x L x W): 150mm x 250mm x 150mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste and extends product life
Easy flameproof repair reduces need for full replacements, minimizing material waste

Warranty Information

Warranty details available upon request from Ausproof.

Available Now

The Ausproof PL 1100V 300A 4 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
