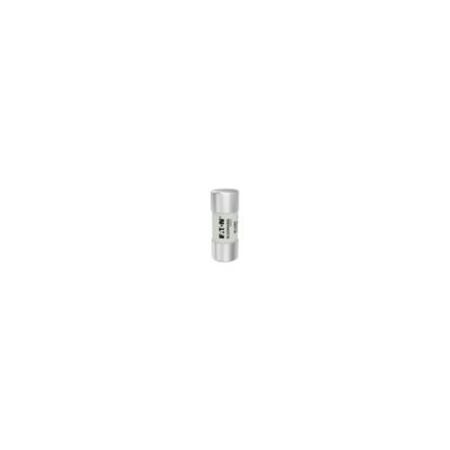

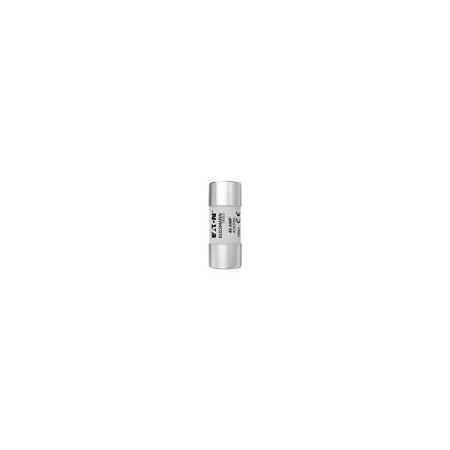

40A 415V AC House Service Fuse | 33 kA Breaking Capacity | gG/gL Class | Compact Design by Eaton
40A 415V AC house service fuse with a high breaking capacity of 33 kA and gG/gL class for general purpose protection—ideal for residential and commercial electrical installations. Built for safety and reliability, this compact fuse ensures compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 40A 415V AC House Service Fuse | 33 kA Breaking Capacity | gG/gL Class | Compact Design by Eaton
Brand: Eaton
SKU: 40KR85
Alternatively Known As: Low Voltage Fuse 40A, British Standard Fuse 40A, 415V AC Fuse, Bussmann KR85 Fuse
Technical Specifications
- Amperage Rating: 40 A
- Voltage Rating: 415 V AC
- Breaking Capacity: 33 kA
- Fuse Type: KR85
- Class: gG/gL
- Construction: BS system C type II
- Dimensions: 23 mm x 57 mm
- Weight: 57.5 g
- Certifications: BS IEC 60269
- Compliances: CE Marked, RoHS Compliant
- Dimensions (H x L x W): 23mm x 57mm x 23mm
- Weight: 0.058 kg
Key Features
- 40A amperage rating suitable for house service applications
- 415V AC voltage rating
- High breaking capacity of 33 kA for safety
- Class gG/gL fuse type for general purpose protection
- BS system C type II construction for reliable performance
- Compact size: 23 x 57 mm
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical protection in low voltage circuits
- Industrial and commercial electrical installations
- House service electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard Eaton warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eaton Bussmann 40A 415V AC low voltage British standard fuse is available for immediate purchase, ideal for electrical protection in residential and commercial house service applications.
