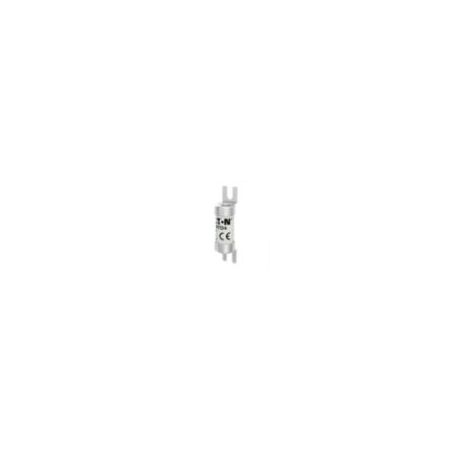

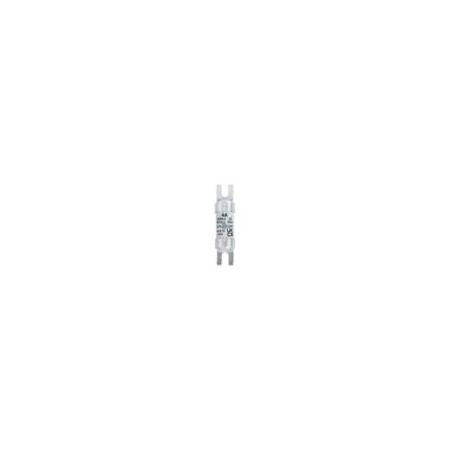

4AMP 550V AC BS88 Fuse | 80 kA Breaking Capacity | gG/gL Class | Offset Bolted Tags by Eaton
4AMP 550V AC BS88 fuse with 80 kA breaking capacity and gG/gL class—ideal for low voltage electrical protection. Built for industrial and commercial installations, with secure offset bolted tags for reliable fitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4AMP 550V AC BS88 Fuse | 80 kA Breaking Capacity | gG/gL Class | Offset Bolted Tags by Eaton
Brand: Eaton
SKU: NITD4
Alternatively Known As: 4 Amp BS88 Fuse, 550V AC Fuse, Eaton Bussmann Fuse, Low Voltage Fuse 4A
Technical Specifications
- Amperage Rating: 4 A
- Voltage Rating: 550 V AC
- Fuse Type: NITD
- Class: gG/gL
- Breaking Capacity: 80 kA
- Construction: BS88/A1
- Dimensions: 14 x 14 x 55 mm
- Fitted with offset bolted tags
- Suitable for CM32FC Camaster and RS20 Red spot fuse holders
- Dimensions (H x L x W): 14mm x 55mm x 14mm
- Weight: 0.015 kg
Key Features
- 4 Ampere current rating
- 550 Volt AC voltage rating
- BS88/A1 construction for reliable performance
- Class gG/gL fuse type suitable for general purpose protection
- Breaking capacity of 80 kA for high fault current interruption
- Offset bolted tags for secure fitting
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical protection in low voltage circuits
- Industrial and commercial electrical installations
- Use with CM32FC Camaster fuse holder and RS20 Red spot fuse holder
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton warranty policy for details.
Available Now
The Eaton 4AMP 550V AC BS88 Fuse is available for immediate purchase, ideal for electrical protection in industrial and commercial low voltage applications.
