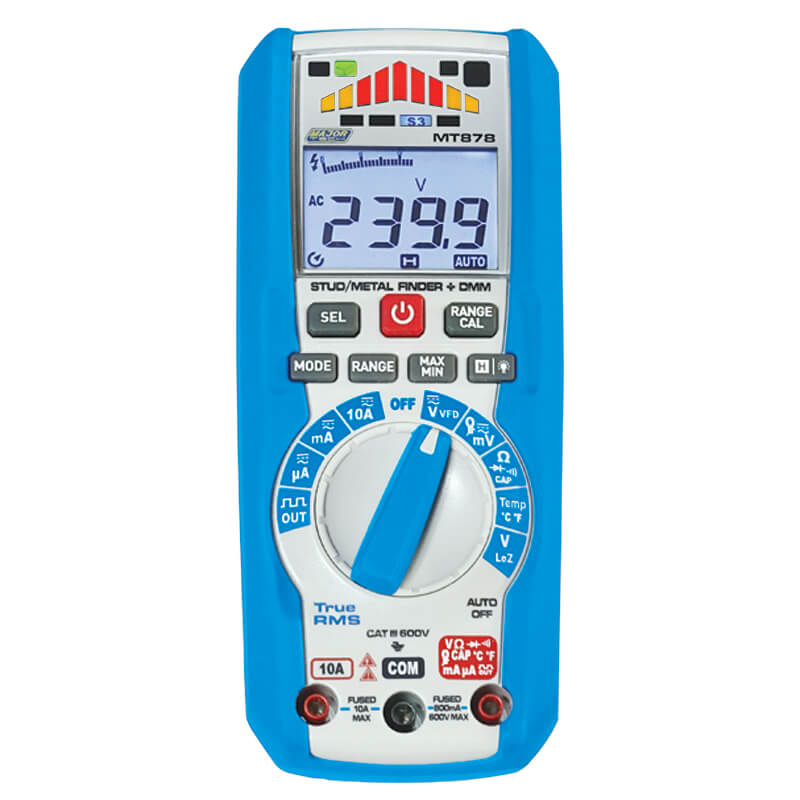

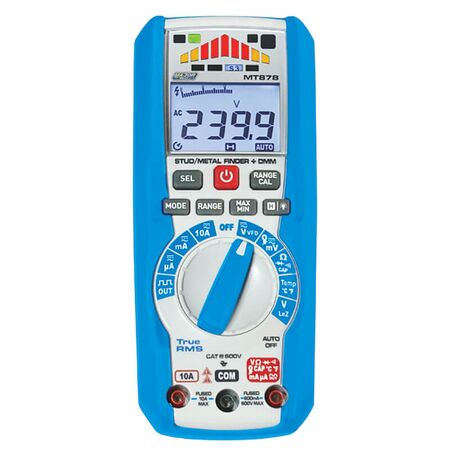

4in1 Stud Metal AC Voltage Finder MajorTech

BRAND: Major Tech
SKU: MT878
$299.60 List price: $399.40
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech detector features 4in1 stud, metal and AC voltage finding. Ideal for locating studs, pipes and live wiring before drilling.

Alternatively Known As: MajorTech MT878 Stud and Metal Finder, Live Wire Detector, Wall Scanner, NCV Multimeter

Technical Specifications
  • Stud Scanning Range: 0–38 mm
  • Ferromagnetic Metal Scanning Range: 0–76 mm
  • Non-Ferromagnetic Metal Scanning Range: 0–38 mm
  • Live Unshielded AC Wire Scanning Range: 0–50 mm
  • AC Voltage Measurement: 40.00 mV–600 V
  • DC Voltage Measurement: 40.00 mV–600 V
  • Current Measurement: 400.0 µA–10 A AC/DC
  • Resistance Range: 400.0 Ω–40 MΩ
  • Display: 4000-count backlit LCD with bar graph and LED indicators
  • Additional Functions: Continuity, diode, capacitance, frequency, temperature, duty cycle and square-wave output
  • Power Supply: 1 x 9 V battery
  • Safety Classification: IEC 61010-1, CAT III 600 V and CAT II 1000 V
  • Auto Power-Off: Approximately 15 minutes
  • Dimensions (H x L x W): 165mm x 70mm x 45mm
  • Weight: 0.326 kg
Key Features
  • Combines stud, metal and live-wire detection with an auto-ranging multimeter
  • Detects studs behind drywall to a depth of 38 mm
  • Provides separate ferromagnetic and non-ferromagnetic metal detection ranges
  • Non-contact voltage detection for live, unshielded AC wiring
  • LoZ AC/DC voltage setting helps reduce errors from ghost voltages
  • True RMS AC response for electrical measurements
  • Multi-colour LED and audible indicators identify detected studs, metal and live AC wires
  • Supplied with test leads, Type-K probe and adaptor, carrying case, 9 V battery and instruction manual
Applications
  • Locating timber studs and joists before drilling or fixing
  • Finding ferromagnetic and non-ferromagnetic metal behind walls
  • Detecting live, unshielded AC wiring before wall penetration
  • Electrical fault-finding and general voltage, current, resistance and continuity measurements
  • Building, electrical, maintenance and renovation work
Environmental Benefits
  • Reusable handheld test instrument can reduce reliance on disposable locating aids
  • Auto power-off helps conserve battery energy during periods of inactivity
  • Replaceable battery-powered design supports continued use without replacing the complete instrument
Warranty Information

MajorTech test instruments are covered by a 2-year warranty from the date of shipment or delivery, subject to the applicable warranty conditions and product registration requirements.

Available Now

Available through MajorTech and authorised Australian distributors.
