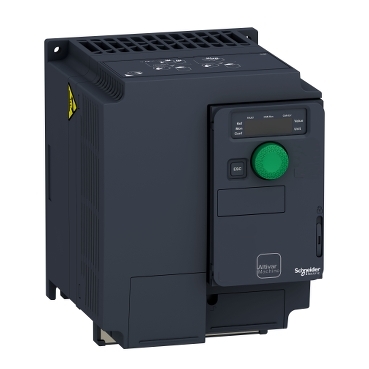

4kW 400V 3PH Compact VSD | Integrated EMC Filter | LCD Display | Overload Protection | @Pack of 1 | by Clipsal
The 4kW 400V 3PH Compact VSD is designed for robust motor control in industrial automation and HVAC systems. With an integrated EMC filter and user-friendly LCD display, it optimizes energy efficiency while providing overload and short-circuit protection. Ideal for licensed electricians, this compact drive ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 4kW 400V 3PH Compact VSD | Integrated EMC Filter | LCD Display | Overload Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV320U40N4C
Alternatively Known As: Variable Speed Drive, VSD, Frequency Inverter, Motor Drive, 4kW VSD, 400V VSD, Three Phase VSD, Clipsal VSD
Technical Specifications
- Power Rating: 4kW
- Input Voltage: 400V AC, 3 Phase
- Output Voltage: 0-400V AC
- Input Frequency: 50/60Hz
- Control Modes: V/F, Sensorless Vector
- Integrated EMC filter
- Overload Capacity: 150% for 60 seconds
- Protection: Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short-circuit
- Display: LCD
- Operating Temperature: -10°C to +50°C
- Dimensions (H x L x W): 180mm x 150mm x 130mm
- Weight: 3.5 kg
Key Features
- 4kW power rating for robust motor control
- Supports 400V three-phase input
- Compact design for easy panel integration
- Integrated EMC filter for reduced electrical noise
- User-friendly interface with LCD display
- Multiple control modes including V/F and sensorless vector
- Built-in safety features such as overload and short-circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and manufacturer guidelines.
Applications
- Industrial automation
- Pumps and fans
- HVAC systems
- Conveyor systems
- General motor control in manufacturing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces power consumption and operational costs
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
12 months manufacturer's warranty covering defects in materials and workmanship.
Available Now
The Clipsal 4kW 400V 3PH Compact VSD (SCHATV320U40N4C) is available for immediate purchase. Ideal for industrial automation, HVAC, and motor control applications.
