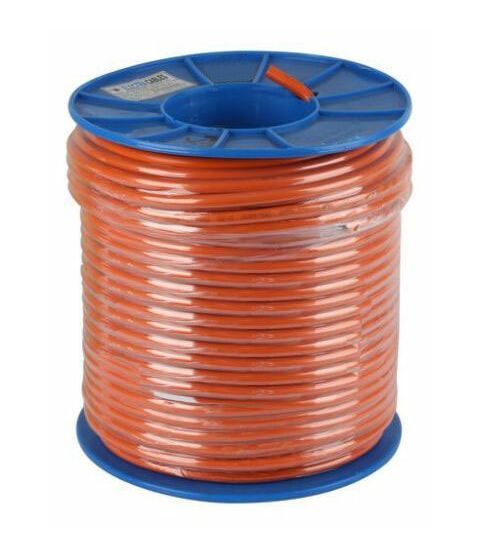

4mm² 4 Core + Earth Power Cable | Orange Circular | 450/750V Rated | by Electra Cables
The 4mm² 4 Core + Earth Power Cable is designed for reliable electrical wiring in residential, commercial, and industrial applications. With a robust orange circular design and a voltage rating of 450/750V, this cable features plain annealed copper conductors and durable PVC insulation, ensuring safety and longevity. Ideal for mains, sub mains, and sub circuits, it meets AS/NZS 5000.2 standards for quality and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 4 Core + Earth Power Cable, 4mm² Circular Cable, Orange Electrical Cable 450/750V
Technical Specifications
- Conductor: Plain annealed copper (AS/NZS 1125)
- Insulation: PVC V90
- Sheath: PVC 5V-90
- Voltage Rating: 450/750V
- Temperature Rating: 90°C
- Standard: AS/NZS 5000.2
- Dimensions (H x L x W): 40mm x 100000mm x 40mm
- Weight: 32.5 kg
Key Features
- 4mm² 4 core + Earth
- Orange circular cable
- Rated voltage 450/750V
- Conductor: Plain annealed copper (AS/NZS 1125)
- Insulation: PVC V90
- Sheath: PVC 5V-90
- Normal operating temperature 90°C
Professional Installation Requirements
- Installation should be performed by a licensed electrician following local electrical codes and standards.
Applications
- Mains, sub mains and sub circuits
- Unenclosed or enclosed in conduit
- Buried direct or underground ducts for buildings and industrial plants
- Suitable for glanding
Standards & Compliance
- Complies with AS/NZS 5000.2 – Electrical cables – Polyvinyl chloride (PVC) insulated cables of rated voltages up to and including 450/750 V
Environmental Benefits
- Durable PVC insulation and sheath reduce environmental impact by extending cable life.
- Copper conductor is recyclable, supporting sustainable material use.
Warranty Information
Warranty as per Electra Cables standard terms and conditions.
Available Now

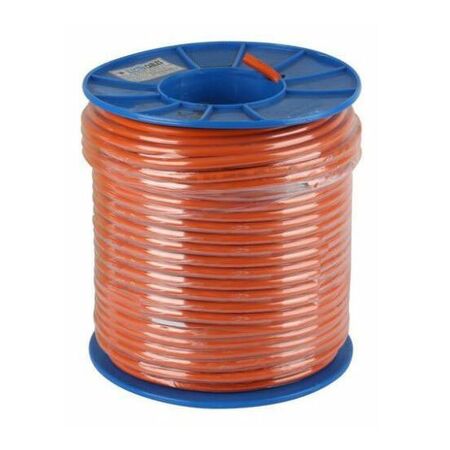

Electra Cables 7/0.85X4C+E Orange Circular Power Cable 450/750V 100m roll is available for immediate purchase, ideal for electrical wiring in residential, commercial, and industrial applications.
