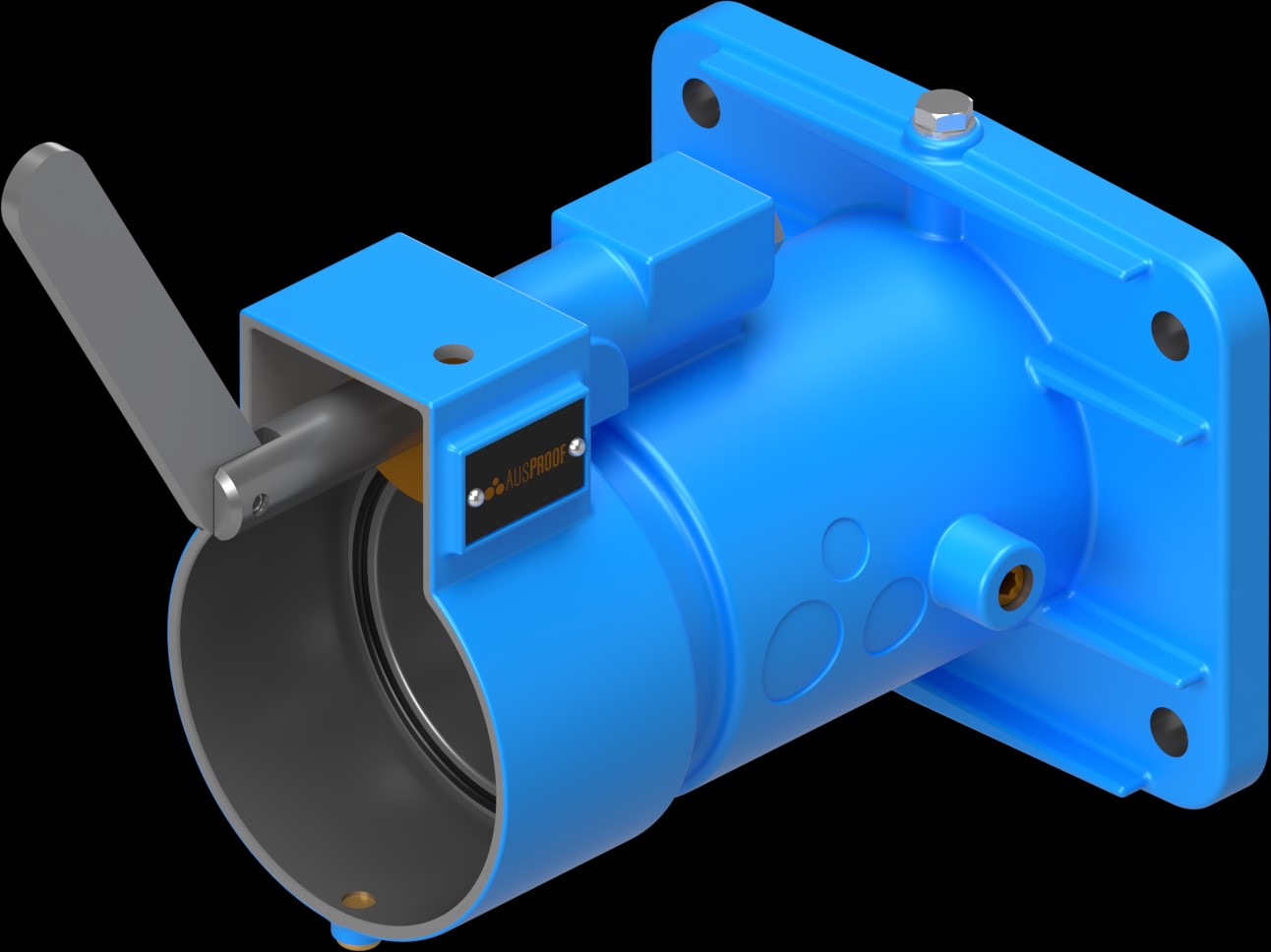

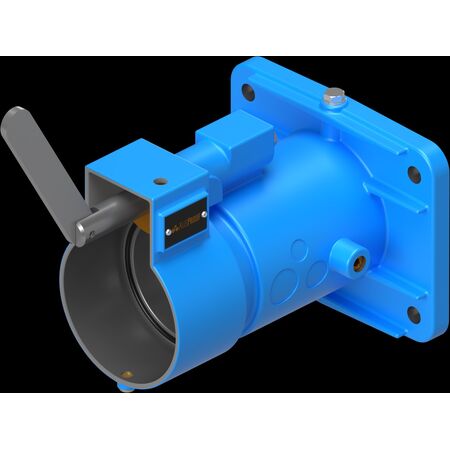

4P Flameproof Electrical Receptacle | 300A Current Rating | IP55 Ingress Protection | Blue Body by Ausproof

BRAND: Ausproof

SKU: RS1906

$863.50 List price: $1,072.50

+ −

30 Days Return Delivery Options

The 4P flameproof electrical receptacle features a 300A current rating and IP55 ingress protection—ideal for mining and hazardous environments. Built for safety and durability, with quick release and easy termination for efficient installation.

Description

Product Name/Title: PL 1100V 300A 4P RECEP Blue Body Kit

Brand: Ausproof

SKU: RS1906

Alternatively Known As: PL Range Receptacle, Ex-certified 4 Pin Receptacle, Flameproof Electrical Receptacle, Mining Grade Receptacle

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Suitable for 300A and 425A ratings
Dimensions (H x L x W): 300mm x 350mm x 250mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by qualified personnel trained in hazardous area electrical equipment installation to ensure compliance with safety standards.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste and replacement frequency
Flameproof repairable design minimizes full unit replacements

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 1100V 300A 4P Receptacle Blue Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial environments requiring robust and flameproof electrical connections.
