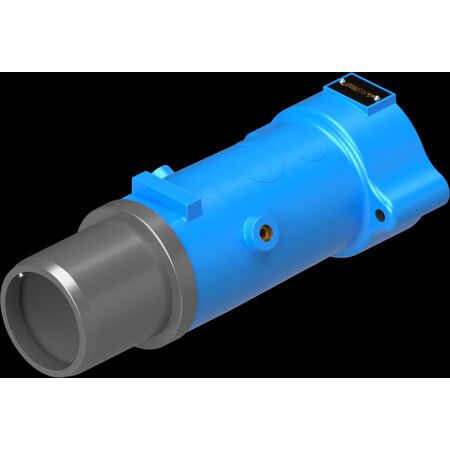

4P Flameproof Plug 300A | 660V to 3300V | IP55 Ingress Protection | Removable Body by Ausproof
This 4P flameproof plug offers a 300A current rating and operates within a voltage range of 660V to 3300V—ideal for mining and hazardous environments. Built for safety and compliance, it features quick release and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 1100V 300A 4P Plug Blue FLP Removable Body
Brand: Ausproof
SKU: RS1973
Alternatively Known As: Flameproof Plug, Ex Certified Plug, Mining Plug, Industrial 4 Pin Plug, High Voltage Plug
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 9.0 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Flameproof design enhances safety, reducing risk of environmental hazards
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 1100V 300A 4P Plug Blue FLP Removable Body is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous industrial applications.
