5 Wire Multiswitch 5 In 24 Out | Remote Powered | Metal Chassis by Matchmaster
5 wire multiswitch with 5-1000 MHz frequency range and remote power—ideal for homes and commercial buildings. Built for extensive signal distribution, with durable metal chassis and energy-efficient design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

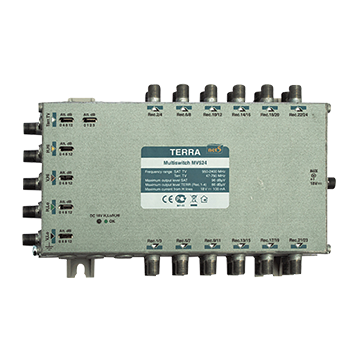

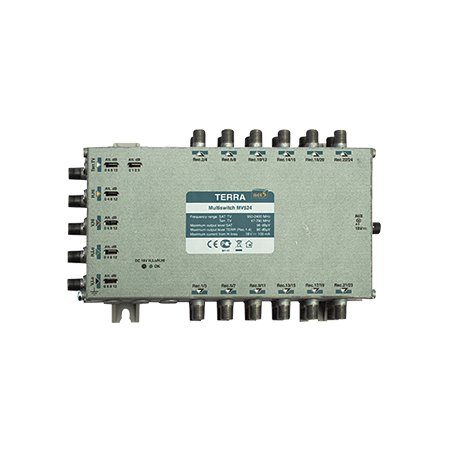

Product Name/Title: TERRA 5 Wire Multiswitch 5 In 24 Out Remote Powered
Brand: Matchmaster
SKU: 21MM-MV524
Alternatively Known As: 5 Wire Multiswitch, Pay TV Multiswitch, Satellite Distribution Multiswitch
Technical Specifications
- Frequency Range: SAT IF 950-2400MHz, Terr. TV 47-862MHz
- SAT IF Gain: Outputs 1-8: 5 ÷ 14dB, Outputs 9-16: 4 ÷12dB, Outputs 17-24: 3 ÷10dB
- Terr. TV Gain: Outputs 1-8: -1 ÷ 5dB, Outputs 9-16: -2 ÷3dB, Outputs 17-24: -3 ÷1dB
- Gain Adjustment SAT IF: 12dB by 4dB Step
- Gain Adjustment Terr. TV: 15dB by 1dB Steps
- Output Level for SAT IF: 105dBµV, for Terr. TV: Outputs 1-4: 88dBµV
- Current Consumption From Receiver: <65mA
- Operating Temperature Range: -20° ÷ +50°C
- Dimensions (H x L x W): 50mm x 227mm x 135mm
- Weight: 1.5 kg
Key Features
- Foxtel approved (F30825)
- Length of the subscriber line up to 80 meters
- Four positions discrete gain regulator for each satellite IF line
- Separate 16 positions discrete gain regulator for terrestrial TV
- Active terrestrial TV path powering from central power supply
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with specifications.
Applications
- Large installations of satellite IF distribution systems
- Residential and commercial projects requiring high-quality signal distribution
Environmental Benefits
- Efficient signal distribution reduces energy consumption in large installations.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The TERRA 5 Wire Multiswitch 5 In 24 Out Remote Powered is available now for immediate purchase. Ideal for large installations requiring reliable signal distribution.
